4W2P SERIES/PARELLEL
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.
- 4 Way 2 Position
- Direct Acting Spool
- Series/Parallel
- When De-Energized, the valve allows flow from (1) to (2), and (3) to (4).
- When Energized, the valve allows flow from (2) to (4) and blocks flow at (1) and (3).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Manual override option
- Industry common Cavity
- Unitized, molded coin design
- Continuous duty rated solenoid
- Optional coil voltages and terminations
- Optinal "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.

Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
---|---|---|---|---|---|---|---|---|---|---|---|

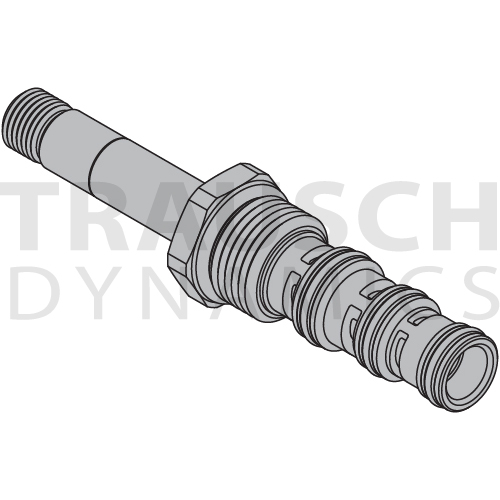

![]() | 7010399 | DG-S4E-00 | 6 | 3000 | 7/8-14 | Buna | -0 | $49.75 / EACH In stock - Ships same day | |||

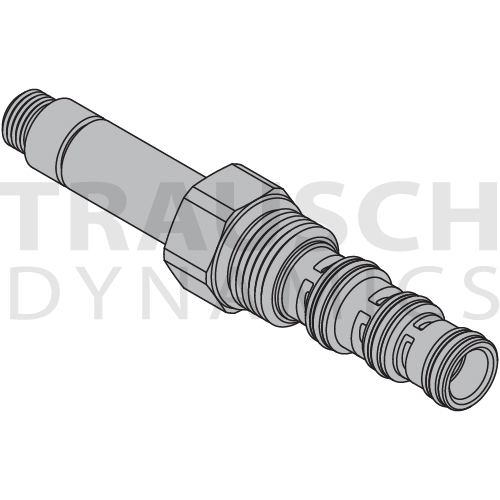

![]() | 7010387 | HG-S4E-00 | 8 | 4000 | 7/8-14 | Buna | -0 | $65.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7010576 | HG-S4E-V0 | 8 | 4000 | 7/8-14 | Viton | -0 | $71.50 / EACH Usually ships in 5 week(s). Expedite available. | |||

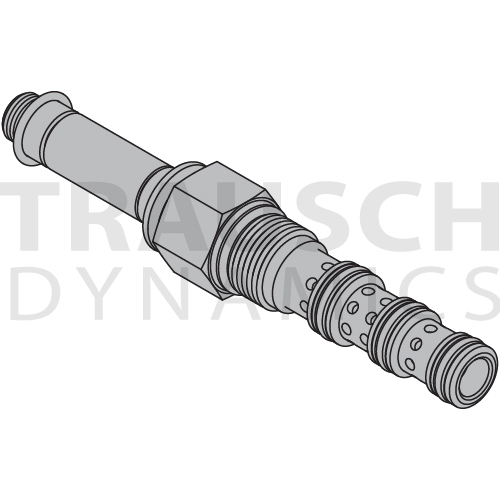

![]() | 7010611 | HV-S4E-00 | 15 | 5000 | 1 1/16-12 | Buna | -0 | $119.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7010613 | HV-S4E-V0 | 15 | 5000 | 1 1/16-12 | Viton | -0 | $129.50 / EACH Usually ships in 5 week(s). Expedite available. |
