16 Series

16 Series

  • Catalog Pages

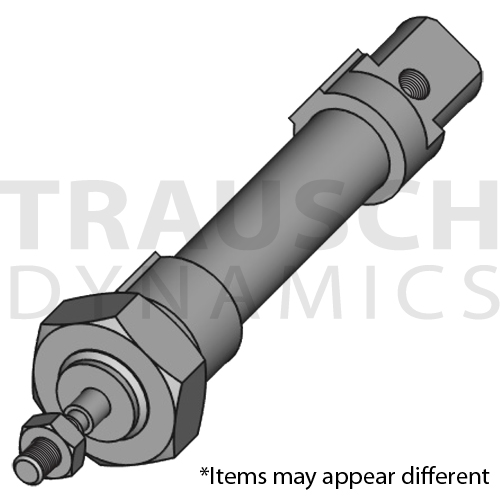

  • Round Body Minicylinders
  • Series 16 available in 8mm, 10mm, and 12mm bore sizes
  • Single or double-acting
  • Standard CETOP RP52P DIN/ISO 6432
  • Stainless steel rod and tube
  • Anodized AL heads and caps
  • Bumpers attached to piston to reduce noise and wear from high impact loads
  • Standard Construction includes threaded nose mount with lock nut + lock nut for rod
  • Materials: rod is rolled stainless steel AISI 303, tube is stainless steel AISI 304, and end-caps are anodized AL

*** Slide table left/right to view more ***

Item Order Qty. Mfr. Number Operation Bore Construction Stroke Seals
16N2A08A007 Camozzi Cylinder, Series 16

6070011

16N2A08A007 Camozzi Cylinder, Series 16

$63.01/each

Usually ships in 5-6 weeks

16N2A08A007 Double-Acting 8 mm Standard 7 mm Standard
16N1A08A010 Camozzi Cylinder, Series 16

6070001

16N1A08A010 Camozzi Cylinder, Series 16

$63.01/each

Usually ships in 5-6 weeks

16N1A08A010 Single-Acting (Front Spring) 8 mm Standard 10 mm Standard
16N2A08A010 Camozzi Cylinder, Series 16

6070012

16N2A08A010 Camozzi Cylinder, Series 16

$63.01/each

Usually ships in 5-6 weeks

16N2A08A010 Double-Acting 8 mm Standard 10 mm Standard
16N2A08A012 Camozzi Cylinder, Series 16

6070013

16N2A08A012 Camozzi Cylinder, Series 16

$66.16/each

Usually ships in 5-6 weeks

16N2A08A012 Double-Acting 8 mm Standard 12 mm Standard
16N1A08A025 Camozzi Cylinder, Series 16

6070002

16N1A08A025 Camozzi Cylinder, Series 16

$66.16/each

Usually ships in 5-6 weeks

16N1A08A025 Single-Acting (Front Spring) 8 mm Standard 25 mm Standard
16N2A08A025 Camozzi Cylinder, Series 16

6070014

16N2A08A025 Camozzi Cylinder, Series 16

$66.16/each

Usually ships in 5-6 weeks

16N2A08A025 Double-Acting 8 mm Standard 25 mm Standard
16N2A08A040 Camozzi Cylinder, Series 16

6070015

16N2A08A040 Camozzi Cylinder, Series 16

$67.67/each

Usually ships in 5-6 weeks

16N2A08A040 Double-Acting 8 mm Standard 40 mm Standard
16N2A08A050 Camozzi Cylinder, Series 16

6070016

16N2A08A050 Camozzi Cylinder, Series 16

$69.34/each

Usually ships in 5-6 weeks

16N2A08A050 Double-Acting 8 mm Standard 50 mm Standard
16N2A08A100 Camozzi Cylinder, Series 16

6070017

16N2A08A100 Camozzi Cylinder, Series 16

$72.52/each

Usually ships in 5-6 weeks

16N2A08A100 Double-Acting 8 mm Standard 100 mm Standard
16N1A10A010 Camozzi Cylinder, Series 16

6070003

16N1A10A010 Camozzi Cylinder, Series 16

$63.01/each

Usually ships in 5-6 weeks

16N1A10A010 Single-Acting (Front Spring) 10 mm Standard 10 mm Standard
16N2A10A010 Camozzi Cylinder, Series 16

6070018

16N2A10A010 Camozzi Cylinder, Series 16

$63.01/each

Usually ships in 5-6 weeks

16N2A10A010 Double-Acting 10 mm Standard 10 mm Standard
16N3A10A010 Camozzi Cylinder, Series 16

6070049

16N3A10A010 Camozzi Cylinder, Series 16

$94.46/each

Usually ships in 5-6 weeks

16N3A10A010 Double-Acting (Through-Rod) 10 mm Standard 10 mm Standard
16N1A10A015 Camozzi Cylinder, Series 16

6070004

16N1A10A015 Camozzi Cylinder, Series 16

$66.16/each

Usually ships in 5-6 weeks

16N1A10A015 Single-Acting (Front Spring) 10 mm Standard 15 mm Standard
16N2A10A015 Camozzi Cylinder, Series 16

6070019

16N2A10A015 Camozzi Cylinder, Series 16

$66.16/each

Usually ships in 5-6 weeks

16N2A10A015 Double-Acting 10 mm Standard 15 mm Standard
16N3A10A015 Camozzi Cylinder, Series 16

6070050

16N3A10A015 Camozzi Cylinder, Series 16

$99.28/each

Usually ships in 5-6 weeks

16N3A10A015 Double-Acting (Through-Rod) 10 mm Standard 15 mm Standard

*** Slide table left/right to view more ***
