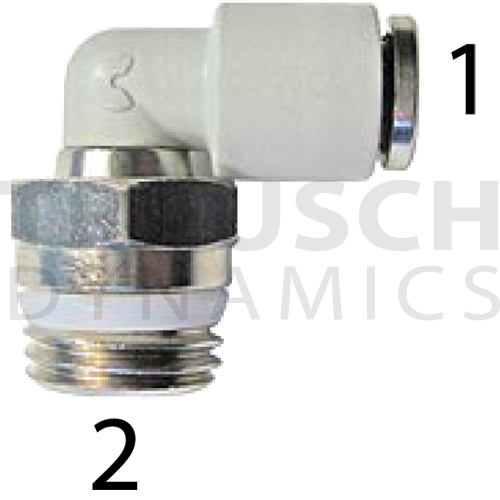

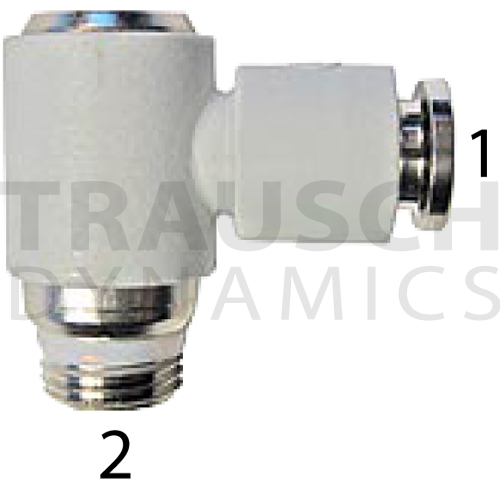

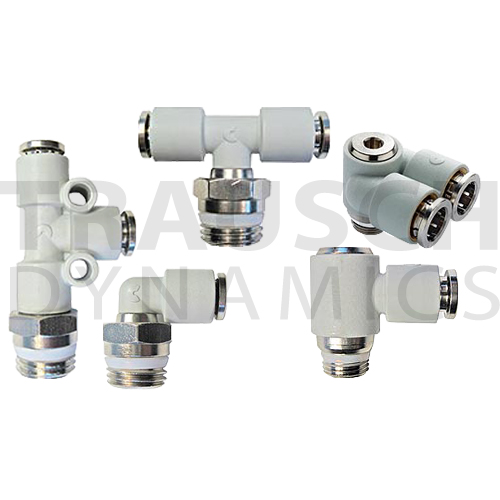

Composite Push-In Fittings Pro-Fit

Name: Trausch Dynamics
Address: 3727 Westgate Road, Grand Island, NE, 68803
Telephone: 800-323-5749

Use on compressed air
Operating pressure up to 250 PSI
-4° to +140°F temperature range
Body: Technopolymer (glass-reinforced Nylon 66 Resin); Insert: brass; collet: nickel-plated brass; seals: NBR
Use with Nylon 6, 11, or 12, polyethylene, PU (polyurethane recommended 90A durometer and above) Hytrel Polyester.
Tube Diameter OD: 5/32", 1/4", 5/16", 3/8", 1/2"
Thread Type: 10-32 UNF; NPTF 1/8", 1/4", 5/16", 3/8", 1/2" with Pro-Fit reusable PTFE seal
