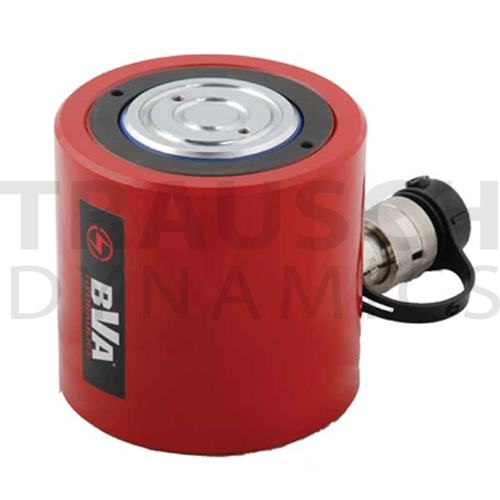

SINGLE ACTING - LOW PROFILE
- Low profile for confined spaces
- Rod wiper helps seal out dirt and contamination
- Specially designed return spring provides quick retraction and extends the life of the spring
- Industrail hard chrome plated rod helps prevent scratching and corrosion
- Rod end is grooved to reduce load slippage
- Includes high flow coupler and dust cap
- Maximum Working Pressure: 10,000 PSI / 700 bar
- BVA Catalog
| Image | Item # | BVA Model# | Capacity (Tons) | Bore | Stroke | Rod Dia. | Effective Area (in2) | Oil Capacity (in3) | Collapsed Height | Extended Height | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 8012709 | HL1001 | 10 Ton | 1.73" | 1.5" | 1.5" | 2.35 | 3.53 | 3.48" | 4.98" | Add to cart to see price Usually ships in 1 day(s) | |||
 | 8013013 | HL2002 | 20 Ton | 2.36" | 1.75" | 2" | 4.37 | 7.65 | 3.9" | 5.65" | Add to cart to see price Usually ships in 1 day(s) | |||
 | 8013016 | HL3002 | 30 Ton | 2.87" | 2.44" | 2.5" | 6.49 | 15.84 | 4.61" | 7.05" | Add to cart to see price Usually ships in 1 day(s) | |||
 | 8013304 | HL5002 | 50 Ton | 3.54" | 2.36" | 2.76" | 9.87 | 23.29 | 4.8" | 7.17" | Add to cart to see price Usually ships in 1 day(s) | |||
 | 8013512 | HL6003KK | 60 Ton | 4" | 2.5" | 3.15" | 12.57 | 31.4 | 5.63" | 8.13" | Add to cart to see price Usually ships in 1 day(s) | |||
 | 8013305 | HL10002 | 100 Ton | 5" | 2.24" | 3.54" | 19.64 | 44.07 | 5.55" | 7.8" | Add to cart to see price Usually ships in 1 day(s) |
