RELIEF VALVES - DIRECT ACTING POPPET - ADJUSTABLE
- Mechanical Pressure Control Valves
- Relief
- Direct Acting - Adjustable

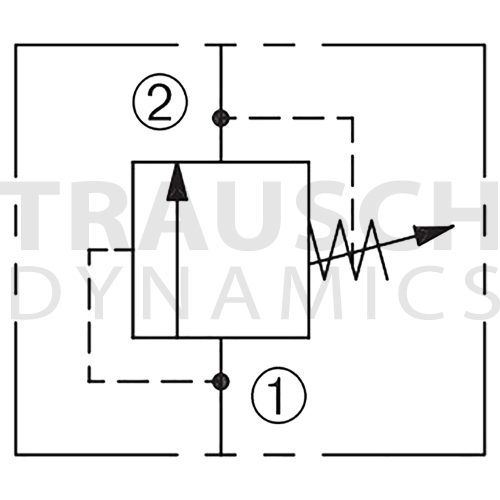

- The valve prevents flow from (1) to (2) until the set crack pressure is present at (1) is achieved
- The poppet then unseats allowing flow from (1) to (2) protecting the circuit from over pressurization
- Quiet operation
- Rapid response to pressure surges
- Hardened poppet and seat for long life
- Aluminum knob and disc nut option
- Adjustment may be locked in place
- Adjustment prevents spring for going solid
- Hidden adjustment (tamper resistant option)
- Industry common cavity
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Spring Range | Adj. Style | Price | Order Qty. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7015258 | DRV-080-N-H-30 | 10 | 3000 | 8 | Buna | 50-3000 PSI | Hidden | $34.64 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015259 | DRV2-080-N-K-4 | 10 | 3000 | 8 | Buna | 100-400 PSI | Knob | $44.63 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015260 | DRV2-080-N-K-20 | 10 | 3000 | 8 | Buna | 300-2000 PSI | Knob | $44.63 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015261 | DRV2-080-N-K-30 | 10 | 3000 | 8 | Buna | 1500-3000 PSI | Knob | $44.63 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015262 | DRV2-080-N-S-4 | 10 | 3000 | 8 | Buna | 100-400 PSI | Screw | $37.36 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015103 | DRV2-080-N-S-20 | 10 | 3000 | 8 | Buna | 300-2000 PSI | Screw | $37.36 / EACH In stock - Ships same day |
| ||||
 | 7015068 | DRV2-080-N-S-30 | 10 | 3000 | 8 | Buna | 1500-3000 PSI | Screw | $37.36 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015263 | DRV-100-N-H-4 | 10 | 3000 | 8 | Buna | 100-400 PSI | Hidden | $48.49 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015264 | DRV-100-N-H-10 | 10 | 3000 | 10 | Buna | 300-1000 PSI | Hidden | $48.49 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015265 | DRV-100-N-H-20 | 10 | 3000 | 10 | Buna | 300-2000 PSI | Hidden | $48.49 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015266 | DRV-100-N-H-30 | 10 | 3000 | 10 | Buna | 1500-3000 PSI | Hidden | $48.49 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015267 | DRV-100-N-K-4 | 10 | 3000 | 10 | Buna | 100-400 PSI | Knob | $60.54 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015268 | DRV-100-N-K-10 | 10 | 3000 | 10 | Buna | 300-1000 PSI | Knob | $60.54 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015269 | DRV-100-N-K-20 | 10 | 3000 | 10 | Buna | 300-2000 PSI | Knob | $60.54 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015270 | DRV-100-N-K-30 | 10 | 3000 | 10 | Buna | 1500-3000 PSI | Knob | $60.54 / EACH Usually ships in 7-8 week(s) |
| ||||
