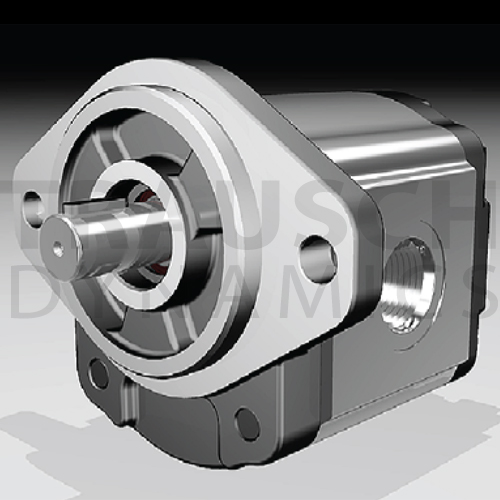

5/8" Keyed Shaft Gear Motors 2.31" Long - SAE A, Aluminum, Honor

5/8" Keyed Shaft Gear Motors 2.31" Long - SAE A, Aluminum, Honor

  • Honor
  • SAE A
  • High-Strength Cast Iron Bodies
  • Hardened Alloy Gears and Shafts
  • Bronze Bearings
  • Buna Seals
  • 5/8" x 5/32 Keyed Shaft 2.31" Long
  • Bi-Directional Rotation

*** Slide table left/right to view more ***

Item Order Qty. Mfr. Number Shaft Keyway In3 Per Rev. Cont. PSI Max PSI RPM Range Working Ports Case Drain
2MM2AU05 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 0.30 CUBIC INCH DISPLACEMENT, 3500 PSI CONTINUOUS, Side Ported, 4200 PSI MAX, 600-4000 RPM RANGE, #12 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU05

5948572

2MM2AU05 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$313.28/each

Usually ships in 3 days

2MM2AU05 5/8" 5/32" 0.30 3500 4200 600 - 4000 #12 SAE O-Ring Inlet & Outlet #6 SAE O-Ring
2MM2AU06 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 0.38 CUBIC INCH DISPLACEMENT, 3500 PSI CONTINUOUS, Side Ported, 4200 PSI MAX, 600-4000 RPM RANGE, #12 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU06

5948573

2MM2AU06 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$313.28/each

Usually ships in 3 days

2MM2AU06 5/8" 5/32" 0.38 3500 4200 600 - 4000 #12 SAE O-Ring Inlet & Outlet #6 SAE O-Ring
2MM2AU07 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 0.43 CUBIC INCH DISPLACEMENT, 3500 PSI CONTINUOUS, Side Ported, 4200 PSI MAX, 600-4000 RPM RANGE, #12 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU07

5948574

2MM2AU07 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$313.28/each

Usually ships in 3 days

2MM2AU07 5/8" 5/32" 0.43 3500 4200 600 - 4000 #12 SAE O-Ring Inlet & Outlet #6 SAE O-Ring
2MM2AU08 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 0.52 CUBIC INCH DISPLACEMENT, 3500 PSI CONTINUOUS, Side Ported, 4200 PSI MAX, 600-4000 RPM RANGE, #12 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU08

5948575

2MM2AU08 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$313.28/each

Usually ships in 3 days

2MM2AU08 5/8" 5/32" 0.52 3500 4200 600 - 4000 #12 SAE O-Ring Inlet & Outlet #6 SAE O-Ring
2MM2AU09 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 0.58 CUBIC INCH DISPLACEMENT, 3500 PSI CONTINUOUS, Side Ported, 4200 PSI MAX, 600-4000 RPM RANGE, #12 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU09

5948576

2MM2AU09 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$313.28/each

Usually ships in 3 days

2MM2AU09 5/8" 5/32" 0.58 3500 4200 600 - 4000 #12 SAE O-Ring Inlet & Outlet #6 SAE O-Ring
2MM2AU11 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 0.69 CUBIC INCH DISPLACEMENT, 3500 PSI CONTINUOUS, Side Ported, 4200 PSI MAX, 600-4000 RPM RANGE, #12 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU11

5948577

2MM2AU11 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$313.28/each

Usually ships in 3 days

2MM2AU11 5/8" 5/32" 0.69 3500 4200 600 - 4000 #12 SAE O-Ring Inlet & Outlet #6 SAE O-Ring
2MM2AU14 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 0.85 CUBIC INCH DISPLACEMENT, 3500 PSI CONTINUOUS, Side Ported, 4200 PSI MAX, 600-4000 RPM RANGE, #12 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU14

5948578

2MM2AU14 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$313.28/each

Usually ships in 3 days

2MM2AU14 5/8" 5/32" 0.85 3500 4200 600 - 4000 #12 SAE O-Ring Inlet & Outlet #6 SAE O-Ring
2MM2AU16 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 0.98 CUBIC INCH DISPLACEMENT, 3500 PSI CONTINUOUS, Side Ported, 4200 PSI MAX, 600-4000 RPM RANGE, #12 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU16

5948579

2MM2AU16 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$325.92/each

Usually ships in 3 days

2MM2AU16 5/8" 5/32" 0.98 3500 4200 600 - 4000 #12 SAE O-Ring Inlet & Outlet #6 SAE O-Ring
2MM2AU18 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 1.10 CUBIC INCH DISPLACEMENT, 3500 PSI CONTINUOUS, Side Ported, 4200 PSI MAX, 600-4000 RPM RANGE, #12 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU18

5948580

2MM2AU18 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$325.92/each

Usually ships in 3 days

2MM2AU18 5/8" 5/32" 1.10 3500 4200 600 - 4000 #12 SAE O-Ring Inlet & Outlet #6 SAE O-Ring
2MM2AU20 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 1.20 CUBIC INCH DISPLACEMENT, 3500 PSI CONTINUOUS, Side Ported, 4200 PSI MAX, 600-4000 RPM RANGE, #12 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU20

5948581

2MM2AU20 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$325.92/each

Usually ships in 3 days

2MM2AU20 5/8" 5/32" 1.20 3500 4200 600 - 4000 #12 SAE O-Ring Inlet & Outlet #6 SAE O-Ring
2MM2AU22 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 1.31 CUBIC INCH DISPLACEMENT, 3000 PSI CONTINUOUS, Side Ported, 3000 PSI MAX, 600-2500 RPM RANGE, #12 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU22

5948582

2MM2AU22 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$325.92/each

Usually ships in 3 days

2MM2AU22 5/8" 5/32" 1.31 3500 3000 600 - 2500 #12 SAE O-Ring Inlet & Outlet #6 SAE O-Ring
2MM2AU24 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 1.44 CUBIC INCH DISPLACEMENT, 2550 PSI CONTINUOUS, Side Ported, 3000 PSI MAX, 600-2500 RPM RANGE, #16 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU24

5948583

2MM2AU24 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$346.29/each

Usually ships in 3 days

2MM2AU24 5/8" 5/32" 1.44 2550 3000 600 - 2500 #16 SAE O-Ring Inlet & Outlet #6 SAE O-Ring
2MM2AU26 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 1.53 CUBIC INCH DISPLACEMENT, 2550 PSI CONTINUOUS, Side Ported, 3000 PSI MAX, 600-2500 RPM RANGE, #16 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU26

5948584

2MM2AU26 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$346.29/each

Usually ships in 3 days

2MM2AU26 5/8" 5/32" 1.53 2550 3000 600 - 2500 #16 SAE O-Ring Inlet & Outlet #6 SAE O-Ring
2MM2AU28 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 1.71 CUBIC INCH DISPLACEMENT, 2550 PSI CONTINUOUS, Side Ported, 3000 PSI MAX, 600-2500 RPM RANGE, #16 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU28

5948585

2MM2AU28 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$367.36/each

Usually ships in 3 days

2MM2AU28 5/8" 5/32" 1.71 2550 3000 600 - 2500 #16 SAE O-Ring Inlet & Outlet #6 SAE O-Ring
2MM2AU30 HONOR HYDRAULIC MOTOR, GEAR TYPE, SAE A 2-BOLT, 5/8" X 5/32" KEYED SHAFT (2.31 LONG), 1.84 CUBIC INCH DISPLACEMENT, 2550 PSI CONTINUOUS, Side Ported, 3000 PSI MAX, 600-2500 RPM RANGE, #16 SAE O-RING INLET & OUTLET, BI-DIRECTIONAL MOTOR, VITON SEALS, PRESSURE BALANCED MOTOR FOR HIGH EFFICIENCY, HONOR 2MM2AU30

5948586

2MM2AU30 HONOR HYDRAULIC MOTOR, GEAR TYPE, S...

$385.20/each

Usually ships in 3 days

2MM2AU30 5/8" 5/32" 1.84 2550 3000 600 - 2500 #16 SAE O-Ring Inlet & Outlet #6 SAE O-Ring

*** Slide table left/right to view more ***
