RESTRICTIVE FLOW REGULATORS - PRESSURE COMPENSATED - FIXED
- Mechanical Flow Control Valves
- Restrictive Flow Regulators
- Pressure Compensated - Fixed

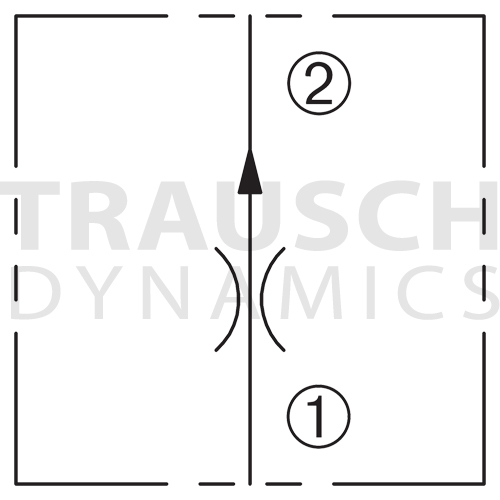

- The cartridge maintains a constant flow within specified accuracies from (1) to (2) regardless of downstream load pressure
- When flow produces a minimum predetermined pressure differential across the compensator spool control orifice, the spool shifts agains the spring force to throttle the flow and maintain the flow setting
- Reverse flow is no regulated
- Pressure-compensated
- Quiet response
- Low flow capabilities
- Hardened parts for long life
- Industry common cavity
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Price | Order Qty. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7015124 | DFR-080-2-N-010 | 0.10 | 3000 | 8 | Buna | $27.73 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015125 | DFR-080-2-N-015 | 0.15 | 3000 | 8 | Buna | $27.73 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015126 | DFR-080-2-N-020 | 0.20 | 3000 | 8 | Buna | $27.73 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015127 | DFR-080-2-N-025 | 0.25 | 3000 | 8 | Buna | $27.73 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015128 | DFR-080-2-N-030 | 0.30 | 3000 | 8 | Buna | $27.73 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015129 | DFR-080-2-N-040 | 0.40 | 3000 | 8 | Buna | $27.73 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015130 | DFR-080-2-N-050 | 0.50 | 3000 | 8 | Buna | $27.73 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015131 | DFR-080-2-N-060 | 0.60 | 3000 | 8 | Buna | $27.73 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015132 | DFR-080-2-N-075 | 0.75 | 3000 | 8 | Buna | $27.73 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015133 | DFR-080-2-N-100 | 1.00 | 3000 | 8 | Buna | $27.73 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015134 | DFR-080-2-N-125 | 1.25 | 3000 | 8 | Buna | $27.73 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015135 | DFR-080-2-N-130 | 1.30 | 3000 | 8 | Buna | $27.73 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015136 | DFR-080-2-N-150 | 1.50 | 3000 | 8 | Buna | $27.73 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015137 | DFR-080-2-N-200 | 2.00 | 3000 | 8 | Buna | $27.73 / EACH Usually ships in 7-8 week(s) |
| ||||
