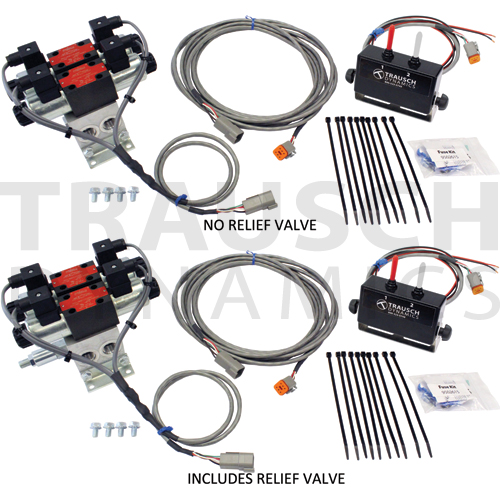

D03 12 GPM 12 VDC ELECTRIC DIRECTIONAL VALVE W/ CONTROL KITS
- Used to control direction of cylinders or motors, depending on application
- Can be used on most mobile equipment, including ag equipment, tow trucks, tractors, and bale beds.
- 12 GPM Nominal Flow
- 21 GPM Intermittent
- 5080 PSI Max at "P", "A", & "B" Ports
- 3050 PSI Max at "T" Port
- Adjustable Relief Valve 100-4000 PSI
- DIN 12 VDC Coils, 33 Watts, 2.72 Amps
- Switch box features easily adjustable bail mount
- Heavy duty long bat handle momentary switches
- Switches are color coded
- Switch box has 3' wiring harness and 6' power cable
- 18 gauge shielded wire
- IP69 Deutsch Connectors
- IP65 Coil Connectors
- IP65 DIN Connectors
- 10 Amp fuse kit
- 20' wiring harness
- 3' Valve harness
| Image | Item # | Sections | # of Switches | Circuit | Tank & Pressure Ports | Work Ports | Relief Valve | Switch Colors | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 9504508 | Double Acting Cylinder | 1 | Parallel/Closed Center | #10 SAE | #8 SAE | No | Red | $479.77 / EACH Usually ships in 1 day(s) | |||
 | 9504509 | Double Acting Cylinder | 1 | Parallel/Closed Center | #10 SAE | #8 SAE | Yes | Red | $550.79 / EACH Usually ships in 1 day(s) | |||
 | 9504444 | Double Acting Cylinder | 2 | Parallel/Closed Center | #10 SAE | #8 SAE | No | Red / White | $662.49 / EACH Usually ships in 1 day(s) | |||
 | 9504445 | Double Acting Cylinder | 2 | Parallel/Closed Center | #10 SAE | #8 SAE | Yes | Red / White | $695.57 / EACH Usually ships in 1 day(s) | |||
 | 9504468 | Double Acting Cylinder | 3 | Parallel/Closed Center | #10 SAE | #8 SAE | No | Red / White / Blue | $912.27 / EACH Usually ships in 1 day(s) | |||
 | 9504469 | Double Acting Cylinder | 3 | Parallel/Closed Center | #10 SAE | #8 SAE | Yes | Red / White / Blue | $985.90 / EACH Usually ships in 1 day(s) | |||
 | 9504484 | Double Acting Cylinder | 4 | Parallel/Closed Center | #10 SAE | #8 SAE | No | Red / White / Blue / Green | $1,292.88 / EACH Usually ships in 1 day(s) | |||
 | 9504485 | Double Acting Cylinder | 4 | Parallel/Closed Center | #10 SAE | #8 SAE | Yes | Red / White / Blue / Green | $1,377.78 / EACH Usually ships in 1 day(s) |
