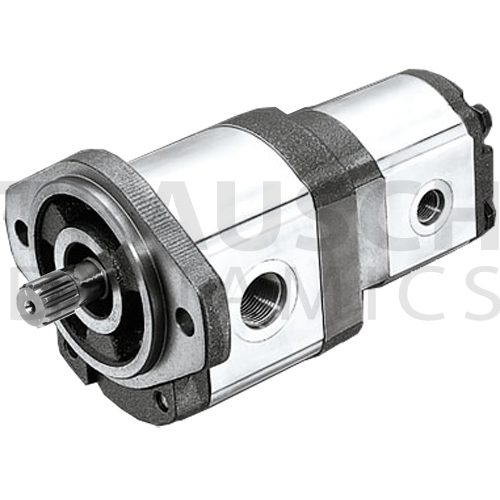

SINGLE INLET PORTED 5/8" 9-TOOTH SPLINED SHAFT GEAR PUMP - SAE A, ALUMINUM, HONOR
- Honor Hydraulic Gear Pumps
- 2 Bolt SAE A Mount
- 3-1/4" Pilot
- 5/8" 9-Tooth Shaft
- O-Ring porting shown per each pump
- Single Inlet Side Ports - SAE O-Ring
| Image | Item # | Mfr. Number | Rotation | Shaft | In3 Per Rev. | GPM @ RPM 1750 | Max PSI | RPM Range | Suction Port Thread | Pressure Port Thread | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5948336 | 2DG2AU0404R | CW | 5/8" 9-Tooth | 0.24/0.24 | 1.82/1.82 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948337 | 2DG2AU0404L | CCW | 5/8" 9-Tooth | 0.24/0.24 | 1.82/1.82 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948338 | 2DG2AU0505R | CW | 5/8" 9-Tooth | 0.30/0.30 | 2.27/2.27 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948339 | 2DG2AU0505L | CCW | 5/8" 9-Tooth | 0.30/0.30 | 2.27/2.27 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948340 | 2DG2AU0705R | CW | 5/8" 9-Tooth | 0.43/0.30 | 3.26/2.27 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948341 | 2DG2AU0705L | CCW | 5/8" 9-Tooth | 0.43/0.30 | 3.26/2.27 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948342 | 2DG2AU0707R | CW | 5/8" 9-Tooth | 0.43/0.43 | 3.26/3.26 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948343 | 2DG2AU0707L | CCW | 5/8" 9-Tooth | 0.43/0.43 | 3.26/3.26 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948344 | 2DG2AU0905R | CW | 5/8" 9-Tooth | 0.58/0.30 | 4.39/2.27 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948345 | 2DG2AU0905L | CCW | 5/8" 9-Tooth | 0.58/0.30 | 4.39/2.27 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948346 | 2DG2AU0907R | CW | 5/8" 9-Tooth | 0.58/0.43 | 4.39/3.26 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948347 | 2DG2AU0907L | CCW | 5/8" 9-Tooth | 0.58/0.43 | 4.39/3.26 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948348 | 2DG2AU0909R | CW | 5/8" 9-Tooth | 0.58/0.58 | 4.39/4.39 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948349 | 2DG2AU0909L | CCW | 5/8" 9-Tooth | 0.58/0.58 | 4.39/4.39 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948350 | 2DG2AU1105R | CW | 5/8" 9-Tooth | 0.69/0.30 | 5.23/2.27 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) |
