RELIEF - PILOT OPERATED - FREE REVERSE FLOW
- Mechanical Pressure Control Valves
- Relief
- Pilot Operated - Free Reverse Flow

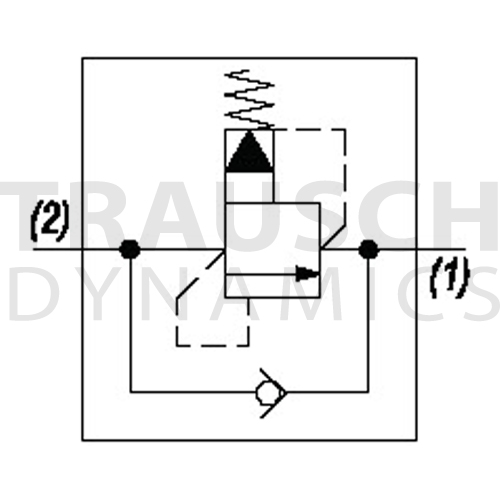

- The valve blocks flow from (2) to (1) until sufficient pressure is present at (2) to force the pilot stage open or to force the pilot stage off its seat and allowing the main stage to shift, opening (2) to (1)
- The relief flow path is from (2) to (1)
- Reverse flow, from (1) to (2), occurs when pressure at (1) is at least 10 PSI (.7 bar) or 30 PSI (2.1 bar) higher than at port (2)
- The cartridge offers smooth transition in response to load changes in common hydraulic circuits
- Hardened parts for long life
- Industry common cavity
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Options | Pressure Range | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010976 | DE-RVR-00-4000 | 15 | 4000 | 7/8-14 | Buna | - | 100-4000 PSI | $66.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011679 | DE-RVR-0K-4000 | 15 | 4000 | 7/8-14 | Buna | Override Knob | 100-4000 PSI | $74.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011680 | DE-RVR-V0-4000 | 15 | 4000 | 7/8-14 | Viton | - | 100-4000 PSI | $72.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011681 | DE-RVR-VK-4000 | 15 | 4000 | 7/8-14 | Viton | Override Knob | 100-4000 PSI | $80.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011739 | DE-RWR-00-4000 | 15 | 4000 | 7/8-14 | Buna | - | 100-4000 PSI | $71.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011740 | DE-RWR-0I-4000 | 15 | 4000 | 7/8-14 | Buna | Internal Adjust | 100-4000 PSI | $71.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011741 | DE-RWR-0K-4000 | 15 | 4000 | 7/8-14 | Buna | Override Knob | 100-4000 PSI | $78.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011742 | DE-RWR-V0-4000 | 15 | 4000 | 7/8-14 | Viton | - | 100-4000 PSI | $95.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011743 | DE-RWR-VI-4000 | 15 | 4000 | 7/8-14 | Viton | Internal Adjust | 100-4000 PSI | $89.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011744 | DE-RWR-VK-4000 | 15 | 4000 | 7/8-14 | Viton | Override Knob | 100-4000 PSI | $84.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011248 | SJ-RVR-00-3500 | 40 | 3500 | 7/8-14 | Buna | - | 500-3500 PSI | $105.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011249 | SJ-RVR-0I-3500 | 40 | 3500 | 7/8-14 | Buna | Internal Adjust | 500-3500 PSI | $105.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011250 | SJ-RVR-0K-3500 | 40 | 3500 | 7/8-14 | Buna | Override Knob | 500-3500 PSI | $112.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011251 | SJ-RVR-V0-3500 | 40 | 3500 | 7/8-14 | Viton | - | 500-3500 PSI | $128.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011252 | SJ-RVR-VI-3500 | 40 | 3500 | 7/8-14 | Viton | Internal Adjust | 500-3500 PSI | $128.75 / EACH Usually ships in 5 week(s). Expedite available. |
