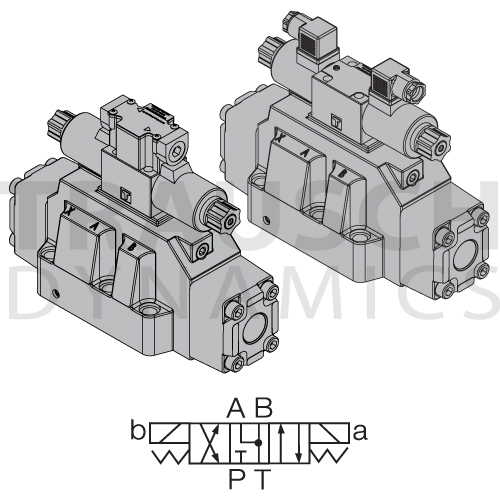

HYDRAULICVALVESDIRECTIONAL CONTROL VALVESELECTRICALLY CONTROLLEDD08 SOLENOID OPERATED DIRECTIONAL CONTROL VALVES

CENTER - A&B TO T

  • 4600 Maximum PSI for P, A, & B Ports
  • 2000 Maximum PSI for T Port - Including Surges
  • 75 Maximum GPM*
  • 150 Cycles/min
  • Mounting Surface: D08
  • 40-160° F Working Temp
  • 80-300 SUS Operating Viscosity
  • 1500 SUS Max Start-up Viscosity
  • 25 micron or less Filtration
  • Hydraulic Pilot Port Size: 1/4" NPT
  • Moderate shifting pressures & quick response
  • Recommended Fluids: Petroleum Based Fluids - ISO VG32-68, Most Vegetalbe Oils
  • *Consult a Sales Representative for Application Assistance
CENTER - A&B TO T
Sort By:
*** Slide left / right to view more ***
CONDUIT BOX
CONDUIT BOX
DIN CONNECTOR
DIN CONNECTOR
