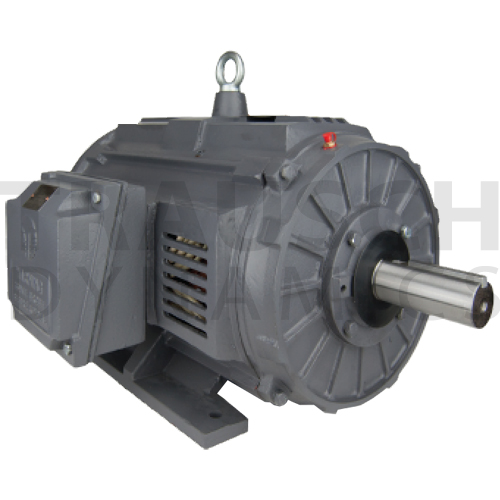

THREE PHASE - OPEN ENCLOSURE
- Three Phase
- NEMA Premium Energy Efficency Design
- 40°C Ambient Temperature Rating
- 36 Month Warranty from Purchase Date
- Inverter Duty - 15:1 Constant Torque
- MG1 Part 31 Compliant for VFD use
- IP 23 Rated
- Double Lip Oil Seal on DE & ODE
- 1.25 SF up to 50HP (1.15 for larger frames)
- 1045 Steel Shaft (through 326T), 4140 (360T & up)
- Class H Insulation System with Class F Stator
- Vacuum Pressure Impregnated Winding
- Tropicalization Protecton on Winding
- Corrosion Resistant Hardware
- Zerk Regresable Bearings 254 Frame & Larger
- Nipple Seals Between Conduit Box & Body
- Rubber Slinger
- Conduit Box is 90° Rotatable
- C & D Flange Abailable
| Image | Item # | MFR Number | HP | Frame | RPM | Voltage | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 5966380 | GR3-RS-OP-143T-2-B-D-1 | 1 | 143T | 3600 | 208-230/460 | $312.66 / EACH Usually ships in 1 day(s) | |||
| 5966384 | GR3-RS-OP-143TC-2-B-D-1 | 1 | 143TC | 3600 | 208-230/460 | $352.61 / EACH Usually ships in 1 day(s) | |||
| 5966383 | GR3-RS-OP-143T-4-B-D-1 | 1 | 143T | 1800 | 208-230/460 | $314.20 / EACH Usually ships in 1 day(s) | |||
| 5966381 | GR3-RS-OP-143T-2-B-D-1.5 | 1.5 | 143T | 3600 | 208-230/461 | $331.10 / EACH Usually ships in 1 day(s) | |||
| 5966388 | GR3-RS-OP-145T-4-B-D-1.5 | 1.5 | 145T | 1800 | 208-230/460 | $341.85 / EACH Usually ships in 1 day(s) | |||
| 5966391 | GR3-RS-OP-145TC-4-B-D-1.5 | 1.5 | 145TC | 1800 | 208-230/460 | $381.80 / EACH Usually ships in 1 day(s) | |||
| 5966389 | GR3-RS-OP-145T-4-B-D-2 | 2 | 145T | 1800 | 208-230/460 | $365.67 / EACH Usually ships in 1 day(s) | |||
| 5966392 | GR3-RS-OP-145TC-4-B-D-2 | 2 | 145TC | 1800 | 208-230/460 | $405.61 / EACH Usually ships in 1 day(s) | |||
| 5966387 | GR3-RS-OP-145T-2-B-D-3 | 3 | 145T | 3600 | 208-230/460 | $484.74 / EACH Usually ships in 1 day(s) | |||
| 5966390 | GR3-RS-OP-145TC-2-B-D-3 | 3 | 145TC | 3600 | 208-230/460 | $564.63 / EACH Usually ships in 1 day(s) | |||
| 5966394 | GR3-RS-OP-182T-4-B-D-3 | 3 | 182T | 1800 | 208-230/460 | $476.29 / EACH Usually ships in 1 day(s) | |||
| 5966398 | GR3-RS-OP-184T-4-B-D-5 | 5 | 184T | 1800 | 208-230/460 | $537.74 / EACH Usually ships in 1 day(s) | |||
| 5966400 | GR3-RS-OP-184TC-4-B-D-5 | 5 | 184TC | 1800 | 208-230/460 | $617.64 / EACH Usually ships in 1 day(s) | |||
| 5966397 | GR3-RS-OP-184T-2-B-D-7.5 | 7.5 | 184T | 3600 | 208-230/460 | $747.46 / EACH Usually ships in 1 day(s) | |||
| 5966399 | GR3-RS-OP-184TC-2-B-D-7.5 | 7.5 | 184TC | 3600 | 208-230/460 | $849.63 / EACH Usually ships in 1 day(s) |
