2W2P NORMALLY CLOSED, BIDIRECTIONAL - DIRECT ACTING POPPET
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.
- 2 Way 2 Position
- Normally Closed
- Bidirectional - Direct Operated Poppet

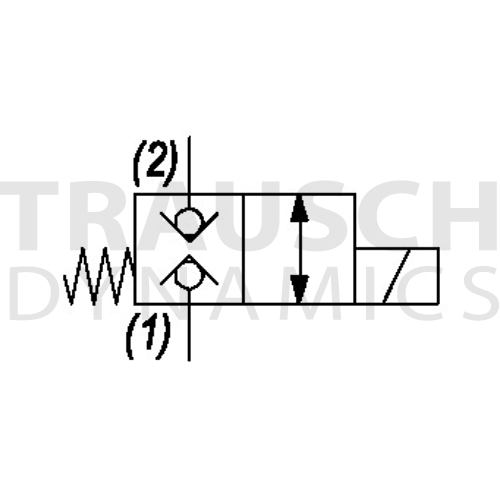

- When de-energized, the valve block flow from (1) to (2) and allows reverse flow from (2) to (1).
- When Energized, the valve allows flow from (1) to (2) and restricts flow from (2) to (1).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Industry common cavity
- Unitized, molded coil design
- Continuous duty rated solenoid
- Optional coil voltage and terminations
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010108 | PB-S2I-00 | 3 | 3600 | 3/4-16 | Buna | -0 | $57.25 / EACH In stock - Ships same day | |||
 | 7010109 | PB-S2I-0M | 4 | 3600 | 3/4-16 | Buna | Override | $74.25 / EACH In stock - Ships same day | |||
 | 7010107 | PB-S2I-0K | 3 | 3600 | 3/4-16 | Buna | Screw Override | $74.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010301 | PB-S2I-V0 | 3 | 3600 | 3/4-16 | Viton | -0 | $60.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010304 | PB-S2I-VK | 3 | 3600 | 3/4-16 | Viton | Screw Override | $77.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010170 | DE-S2I-00 | 3 | 3000 | 7/8-14 | Buna | -0 | $69.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010171 | DE-S2I-0M | 3 | 3000 | 7/8-14 | Buna | Override | $80.00 / EA Usually ships in 5 week(s). Expedite available. | |||
 | 7010168 | DE-S2I-0K | 3 | 3000 | 7/8-14 | Buna | Override Knob | $85.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010450 | DE-S2I-A0 | 3 | 3000 | 7/8-14 | Buna | Screen | $71.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010451 | DE-S2I-B2 | 3 | 3000 | 7/8-14 | Buna | Screen & Override | $87.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010452 | DE-S2I-B5 | 3 | 3000 | 7/8-14 | Buna | Screen & Override Knob | $92.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010453 | DE-S2I-V0 | 3 | 3000 | 7/8-14 | Viton | -0 | $72.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010454 | DE-S2I-V2 | 3 | 3000 | 7/8-14 | Viton | Screen & Override | $85.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010455 | DE-S2I-V5 | 3 | 3000 | 7/8-14 | Viton | Screen & Override Knob | $85.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010456 | DE-S2I-VM | 3 | 3000 | 7/8-14 | Viton | Override | $83.00 / EACH Usually ships in 5 week(s). Expedite available. |
