DIRECT ACTING CHECK VALVE - REVERSE FLOW
- Mechanical Directional Control valves
- Direct Acting Chceck Valves
- Reverse Flow

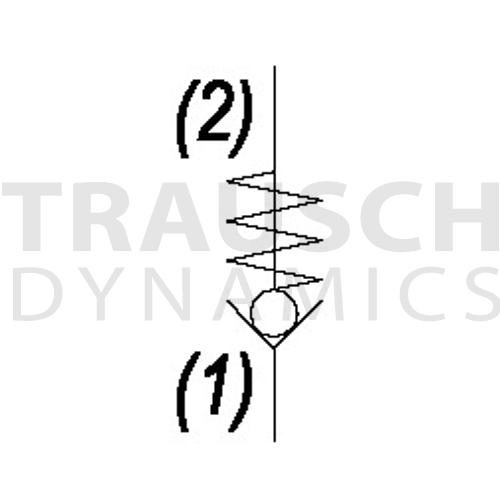

- The valve allows free flow from (1) to (2), and blocks flow from (2) to (1)
- The cartridge has a fully guided poppet, which are spring-biased closed, until pressure is applied at (1) to open to (2)
- Hardened parts for long life and low leakage
- Optional bias springs for backpressure application flexibility
- Industry common cavity
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Options | Crack Pressure | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010672 | DE-CVR-00-0005 | 15 | 3500 | 7/8-14 | Buna | - | 5 PSI | $33.00 / EACH Usually ships in 11 week(s) | |||
 | 7010671 | DE-CVR-00-0025 | 15 | 3500 | 7/8-14 | Buna | - | 25 PSI | $33.00 / EACH Usually ships in 11 week(s) | |||
 | 7011559 | DE-CVR-A0-0005 | 15 | 3500 | 7/8-14 | Buna | w/Screen | 5 PSI | $36.00 / EACH Usually ships in 11 week(s) | |||
 | 7011560 | DE-CVR-A0-0025 | 15 | 3500 | 7/8-14 | Buna | w/Screen | 25 PSI | $36.00 / EACH Usually ships in 11 week(s) | |||
 | 7010897 | DE-CVR-V0-0005 | 15 | 3500 | 7/8-14 | Viton | - | 5 PSI | $36.00 / EACH Usually ships in 11 week(s) | |||
 | 7010898 | DE-CVR-V0-0025 | 15 | 3500 | 7/8-14 | Viton | - | 25 PSI | $36.00 / EACH Usually ships in 11 week(s) | |||
 | 7011561 | DE-CVR-W0-0005 | 15 | 3500 | 7/8-14 | Viton | w/Screen | 5 PSI | $39.00 / EACH Usually ships in 11 week(s) | |||
 | 7011562 | DE-CVR-W0-0025 | 15 | 3500 | 7/8-14 | Viton | w/Screen | 25 PSI | $39.00 / EACH Usually ships in 11 week(s) | |||
 | 7012224 | HT-CVR-00-0010 | 35 | 5000 | 1 1/16-12 | Buna | - | 10 PSI | $51.00 / EACH Usually ships in 11 week(s) | |||
 | 7012225 | HT-CVR-00-0030 | 35 | 5000 | 1 1/16-12 | Buna | - | 30 PSI | $51.00 / EACH Usually ships in 11 week(s) | |||
 | 7012226 | HT-CVR-00-0050 | 35 | 5000 | 1 1/16-12 | Buna | - | 50 PSI | $51.00 / EACH Usually ships in 11 week(s) | |||
 | 7012227 | HT-CVR-V0-0010 | 35 | 5000 | 1 1/16-12 | Viton | - | 10 PSI | $57.00 / EACH Usually ships in 11 week(s) | |||
 | 7012228 | HT-CVR-V0-0030 | 35 | 5000 | 1 1/16-12 | Viton | - | 30 PSI | $57.00 / EACH Usually ships in 11 week(s) | |||
 | 7012229 | HT-CVR-V0-0050 | 35 | 5000 | 1 1/16-12 | Viton | - | 50 PSI | $57.00 / EACH Usually ships in 11 week(s) |
