3W2P STANDARD FLOW 3>2 - 1>3
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.

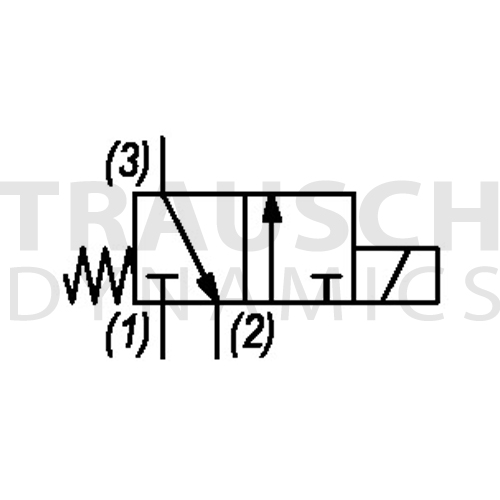

- 3 Way 2 Position
- Direct Acting Spool
- When de-energized, the valve allows flow from (3) to (2) and blocks flow at port (1).
- When Energized, the valve allows flow from (1) to (3) and blocks flow at port (2).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Manual override option
- Industry common cavity
- Unitized, molded coil design
- Continuous duty rated solenoid
- Optional coil voltage and terminations
- Optional "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010207 | MC-S3A-00 | 1 | 3500 | 5/8-18 | Buna | - | $40.00 / EACH In stock - Ships same day | |||
 | 7010467 | UC-S3A-00 | 1 | 3500 | 5/8-18 | Buna | - | $38.75 / EACH In stock - Ships same day | |||
 | 7010468 | UC-S3A-V0 | 1 | 3500 | 5/8-18 | Viton | - | $41.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010242 | PP-S3A-00 | 3 | 3000 | 3/4-16 | Buna | - | $38.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010243 | PP-S3A-0M | 3 | 3000 | 3/4-16 | Buna | Override & Detent | $66.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010471 | PP-S3A-A0 | 3 | 3000 | 3/4-16 | Buna | Screen | $40.50 / EACH In stock - Ships same day | |||
 | 7010472 | PP-S3A-B1 | 3 | 3000 | 3/4-16 | Buna | Override & Non-Detent | $66.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010473 | PP-S3A-B3 | 3 | 3000 | 3/4-16 | Buna | Screen, Override & Non-Detent | $68.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010474 | PP-S3A-B4 | 3 | 3000 | 3/4-16 | Buna | Screen, Override & Detent | $68.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010475 | PP-S3A-V0 | 3 | 3000 | 3/4-16 | Viton | - | $42.50 / EACH In stock - Ships same day | |||
 | 7010476 | PP-S3A-V1 | 3 | 3000 | 3/4-16 | Viton | Override & Non-Detent | $70.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010477 | PP-S3A-V3 | 3 | 3000 | 3/4-16 | Viton | Screen, Override & Non-Detent | $74.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010478 | PP-S3A-V4 | 3 | 3000 | 3/4-16 | Viton | Screen, Override & Detent | $74.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010479 | PP-S3A-VM | 3 | 3000 | 3/4-16 | Viton | Override & Detent | $70.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010480 | PP-S3A-W0 | 3 | 3000 | 3/4-16 | Viton | Screen | $43.50 / EACH Usually ships in 5 week(s). Expedite available. |
