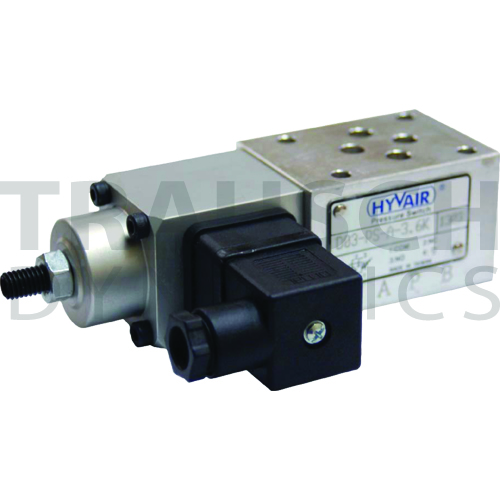

D03 Series

Name: Trausch Dynamics
Address: 3727 Westgate Road, Grand Island, NE, 68803
Telephone: 800-323-5749

Compact, rugged pressure switch
For Hydraulic, Lubricating & Light Oils
Micro switch rated for 20 cycles/min
1/4 NPTF pipe thread
Common, Normally Open and Normally Closed Terminals
Switch ratings: 14 VDC = 3A Resistive, 1.5A Inductive; 30VDC = 2A Resistive, 1A Inductive; 120VAC = 3A Resistive, 1A Inductive; 240VAC = 3A Resistive, 0.5A Inductive
Ambient Temperature: 130°F to 175°F
Piston Actuated
DIN 43650 Electrial Connection

*** Slide table left/right to view more ***

Item	Order Qty.	Mfr. Number	Adjustment Range	Sensing Port
8021117 D03-PSA-1K Pressure Switch, 90-1000 PSI, Sen...	$152.16/each Usually ships in 5 days	D03-PSA-1K	90-1000 PSI	A Port
8020780 D03-PSA-3.6K Pressure Switch, 50-3600 PSI, S...	$141.54/each Usually ships in 5 days	D03-PSA-3.6K	50-3600 PSI	A Port
8021118 D03-PS-AB-1K Pressure Switch, 90-1000 PSI, S...	$158.78/each Usually ships in 5 days	D03-PS-AB-1K	90-1000 PSI	Both A & B Ports
8021119 D03-PSAB-3.6K Pressure Switch, 50-3600 PSI,...	$158.78/each Usually ships in 5 days	D03-PSAB-3.6K	50-3600 PSI	Both A & B Ports
8021120 D03-PSB-1K Pressure Switch, 90-1000 PSI, Sen...	$152.16/each Usually ships in 5 days	D03-PSB-1K	90-1000 PSI	B Port
8021121 D03-PSB-3.6K Pressure Switch, 50-3600 PSI, S...	$152.16/each Usually ships in 5 days	D03-PSB-3.6K	50-3600 PSI	B Port
8021122 D03-PSP-1KPressure Switch, 90-1000 PSI, Sens...	$158.78/each Usually ships in 5 days	D03-PSP-1K	90-1000 PSI	P Port
8021123 D03-PSP-3.6K Pressure Switch, 90-1000 PSI, S...	$158.78/each Usually ships in 5 days	D03-PSP-3.6K	50-3600 PSI	P Port

*** Slide table left/right to view more ***

Page 1 of 1
