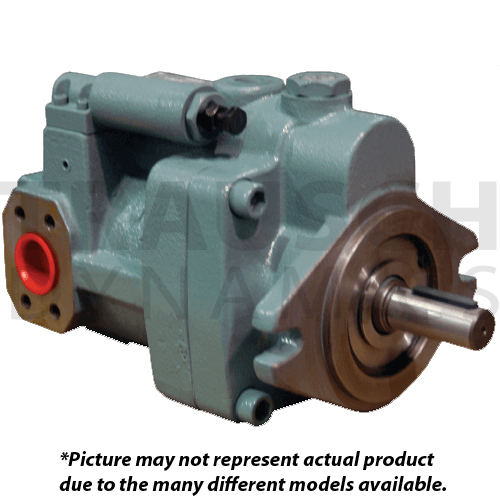

PCP20 Series Piston Pumps 20 GPM

PCP20 Series Piston Pumps 20 GPM

  • Hyvair Pressure Compensated Pumps
  • Up to 3000 PSI
  • 100% Tested
  • Pressure Compensator
  • 1800 RPM Maximum
  • PCP21 - SAE 'B' 2-Bolt 7/8" Keyed Shaft, 1/4" Key, 2.125" Shaft Length
  • Reduces heat, noise and horsepower requirements. Pump maintains constant pressure while matching system flow demands.
  • Diresct spring operated compensator, no safety relief vave required.
  • Dependable operation-compensator not prone to contamination.
  • Sturdy construction, precise machining ensures durability.
  • Pumps can be reduced as much as 50% of total maximum displacement.

*** Slide table left/right to view more ***

Item Order Qty.
PCP21-3K-2BK-2 Hyvair, Piston Pump, 2.76 In3 Displacement, CW Rotation, 7/8" Keyed Shaft, 1/4" Key, SAE 'B' 2-Bolt Mounting Flange, Side Ports, Inlet 1-1/4" SAE Code 61 Flange, Outlet 1" SAE Code 61 Flange, SAE #8 Female Case Drain, Pressure Compensator Adjustment Range 500-3000 PSI, Includes Flow Adjustment (0.64 In3 to 2.76 In3), 100% Factory Tested, PCP21-3K-2BK-2 Hyvair

8020894

PCP21-3K-2BK-2 Hyvair, Piston Pump, 2.76 In3 Displacement, CW Rotation, 7/8" Keyed Shaft, 1/4" Key, SAE 'B' 2-Bolt Mounting Flange, Side Ports, Inlet 1-1/4" SAE Code 61 Flange, Outlet 1" SAE Code 61 Flange, SAE #8 Female Case Drain, Pressure Compensator Adjustment Range 500-3000 PSI, Includes...

$2,030.84/each

Ships next business day

PCP21-3K-2BK-2-2P2F Hyvair, Piston Pump, 2.76 In3 Displacement, CW Rotation, 7/8" Keyed Shaft, 1/4" Key, SAE 'B' 2-Bolt Mounting Flange, Side Ports, Inlet 1-1/4" SAE Code 61 Flange, Outlet 1" SAE Code 61 Flange, SAE #8 Female Case Drain, Two Pressure Two Flow Pressure Compensator Adjustment Range 500-3000 PSI, Includes Flow Adjustment (0.64 In3 to 2.76 In3), 100% Factory Tested, PCP213K2BK22P2F Hyvair

8020895

PCP21-3K-2BK-2-2P2F Hyvair, Piston Pump, 2.76 In3 Displacement, CW Rotation, 7/8" Keyed Shaft, 1/4" Key, SAE 'B' 2-Bolt Mounting Flange, Side Ports, Inlet 1-1/4" SAE Code 61 Flange, Outlet 1" SAE Code 61 Flange, SAE #8 Female Case Drain, Two Pressure Two Flow Pressure Compensator Adjustment Ra...

$2,547.77/each

Ships next business day
