Horizontal Plastic Tanks (Tall)

Horizontal Plastic Tanks (Tall)

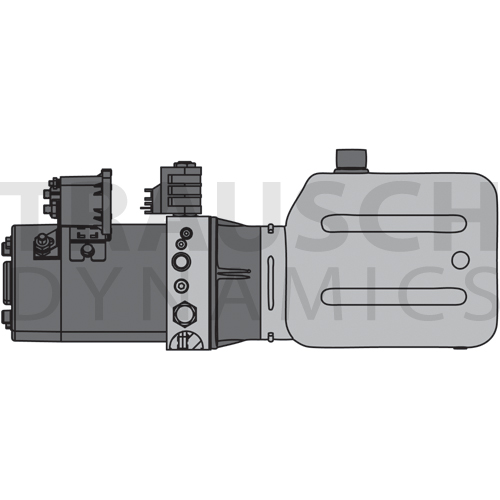

  • Double-Acting Cylinder, Power-Up, Power-Down, Power Unit
  • Load Holding On Port "A"
  • Horizontal Plastic Tank (6.70" Square)
  • #6 SAE O-Ring Ports
  • Relief Set At 3200 PSI, Adjustable from 1800 PSI to 3200 PSI
  • Integral Pressure Port Check Valve
  • Heavy Duty Ball-Bearing Motor
  • Heavy Duty Motor Start Switch
  • Made in the USA

*** Slide table left/right to view more ***

Item Order Qty. Mfr. Number Tank Capacity Overall Tank Length
D203T-5014-55-32 - MTE 12 VDC Power Unit, Hydraulic Circuit: Double-Acting Cylinder, Load Holding on 'A' Port, 1.80 Quart Capacity, Horizontal Plastic Tank, Ports are #6 SAE O-Ring, Relief is set at 3200 PSI (Adjustable From 1750 PSI to 3200 PSI), Integral Pressure Port Check Valve, Heavy-Duty Ball-Bearing Motor, Heavy-Duty Motor Start Switch. Also Replaces MTE D202T-5014-55-32.

6111211

D203T-5014-55-32 - MTE 12 VDC Power Unit, Hy...

$538.52/asmb

In stock - Ships same day

D203T-5014-55-32 1.80 Quarts 6.5"
D203T-5014-78-32 - MTE 12 VDC Power Unit, Hydraulic Circuit: Double-Acting Cylinder, Load Holding on 'A' Port, 2.50 Quart Capacity, Horizontal Plastic Tank, Ports are #6 SAE O-Ring, Relief is set at 3200 PSI (Adjustable From 1750 PSI to 3200 PSI), Integral Pressure Port Check Valve, Heavy-Duty Ball-Bearing Motor, Heavy-Duty Motor Start Switch. Also Replaces MTE D202T-5014-78-32.

6111213

D203T-5014-78-32 - MTE 12 VDC Power Unit, Hy...

$541.15/asmb

In stock - Ships same day

D203T-5014-78-32 2.50 Quarts 8.0"
D203T-5014-56-32 - MTE 12 VDC Power Unit, Hydraulic Circuit: Double-Acting Cylinder, Load Holding on 'A' Port, 3.25 Quart Capacity, Horizontal Plastic Tank, Ports are #6 SAE O-Ring, Relief is set at 3200 PSI (Adjustable From 1750 PSI to 3200 PSI), Integral Pressure Port Check Valve, Heavy-Duty Ball-Bearing Motor, Heavy-Duty Motor Start Switch. Also Replaces MTE D202T-5014-56-32.

6111215

D203T-5014-56-32 - MTE 12 VDC Power Unit, Hy...

$544.67/asmb

In stock - Ships same day

D203T-5014-56-32 3.25 Quarts 9.0"
D203T-5014-57-32 - MTE 12 VDC Power Unit, Hydraulic Circuit: Double-Acting Cylinder, Load Holding on 'A' Port, 4.60 Quart Capacity, Horizontal Plastic Tank, Ports are #6 SAE O-Ring, Relief is set at 3200 PSI (Adjustable From 1750 PSI to 3200 PSI), Integral Pressure Port Check Valve, Heavy-Duty Ball-Bearing Motor, Heavy-Duty Motor Start Switch. Also Replaces MTE D202T-5014-57-32.

6111217

D203T-5014-57-32 - MTE 12 VDC Power Unit, Hy...

$546.82/asmb

In stock - Ships same day

D203T-5014-57-32 1.10 Gallons 11.0"
D203T-5014-58-32 - MTE 12 VDC Power Unit, Hydraulic Circuit: Double-Acting Cylinder, Load Holding on 'A' Port, 1.38 Gallon Capacity, Horizontal Plastic Tank, Ports are #6 SAE O-Ring, Relief is set at 3200 PSI (Adjustable From 1750 PSI to 3200 PSI), Integral Pressure Port Check Valve, Heavy-Duty Ball-Bearing Motor, Heavy-Duty Motor Start Switch. Also Replaces MTE D202T-5014-58-32.

6111219

D203T-5014-58-32 - MTE 12 VDC Power Unit, Hy...

$549.55/asmb

In stock - Ships same day

D203T-5014-58-32 1.38 Gallons 13.0"
D203T-5014-59-32 - MTE 12 VDC Power Unit, Hydraulic Circuit: Double-Acting Cylinder, Load Holding on 'A' Port, 1.80 Gallon Capacity, Horizontal Plastic Tank, Ports are #6 SAE O-Ring, Relief is set at 3200 PSI (Adjustable From 1750 PSI to 3200 PSI), Integral Pressure Port Check Valve, Heavy-Duty Ball-Bearing Motor, Heavy-Duty Motor Start Switch. Also Replaces MTE D202T-5014-59-32.

6111221

D203T-5014-59-32 - MTE 12 VDC Power Unit, Hy...

$552.60/asmb

In stock - Ships same day

D203T-5014-59-32 1.80 Gallons 16.0"
D203T-5014-60-32 - MTE 12 VDC Power Unit, Hydraulic Circuit: Double-Acting Cylinder, Load Holding on 'A' Port, 2.50 Gallon Capacity, Horizontal Plastic Tank, Ports are #6 SAE O-Ring, Relief is set at 3200 PSI (Adjustable From 1750 PSI to 3200 PSI), Integral Pressure Port Check Valve, Heavy-Duty Ball-Bearing Motor, Heavy-Duty Motor Start Switch. Also Replaces MTE D202T-5014-60-32.

6111223

D203T-5014-60-32 - MTE 12 VDC Power Unit, Hy...

$556.23/asmb

In stock - Ships same day

D203T-5014-60-32 2.50 Gallons 20.0"
D203T-5014-61-32 - MTE 12 VDC Power Unit, Hydraulic Circuit: Double-Acting Cylinder, Load Holding on 'A' Port, 3.25 Gallon Capacity, Horizontal Plastic Tank, Ports are #6 SAE O-Ring, Relief is set at 3200 PSI (Adjustable From 1750 PSI to 3200 PSI), Integral Pressure Port Check Valve, Heavy-Duty Ball-Bearing Motor, Heavy-Duty Motor Start Switch. Also Replaces MTE D202T-5014-61-32.

6111225

D203T-5014-61-32 - MTE 12 VDC Power Unit, Hy...

$569.23/asmb

In stock - Ships same day

D203T-5014-61-32 3.25 Gallons 26.0"
D203T-5014-62-32 - MTE 12 VDC Power Unit, Hydraulic Circuit: Double-Acting Cylinder, Load Holding on 'A' Port, 4.00 Gallon Capacity, Horizontal Plastic Tank, Ports are #6 SAE O-Ring, Relief is set at 3200 PSI (Adjustable From 1750 PSI to 3200 PSI), Integral Pressure Port Check Valve, Heavy-Duty Ball-Bearing Motor, Heavy-Duty Motor Start Switch. Also Replaces MTE D202T-5014-62-32.

6111227

D203T-5014-62-32 - MTE 12 VDC Power Unit, Hy...

$572.17/asmb

In stock - Ships same day

D203T-5014-62-32 4.00 Gallons 31.0"

*** Slide table left/right to view more ***

Page 1 of 1
