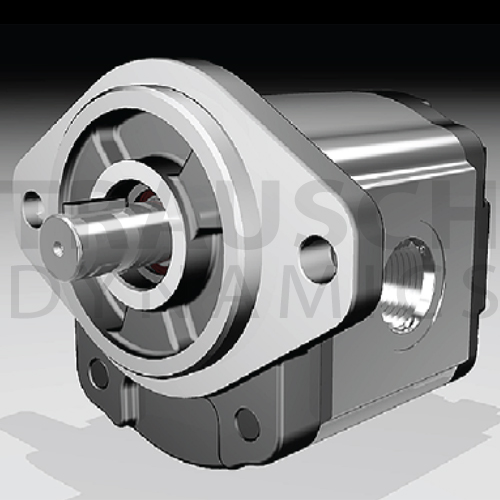

SIDE PORTED 7/8" KEYED SHAFT GEAR PUMPS - SAE B, ALUMINUM, HONOR
- Honor Hydraulic Gear Pumps
- 2 Bolt SAE B Mount
- 4" Pilot
- 7/8" Shaft x 1/4" Key
- Side Ports - SAE O-Ring
- Similar to Prince SP25 Series
| Image | Item # | Mfr. Number | Rotation | Shaft | In3 Per Rev. | GPM @ RPM 1725/3450 | Cont. PSI | Max. PSI | RPM Range | Suction Port Thread | Pressure Port Thread | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5947386 | 3GB6U123R | CW | 7/8" X 1/4" Key | 1.4 | 10.45/20.91 | 3500 | 3800 | 600-3000 | #16 SAE | #12 SAE | $519.84 / EACH Usually ships in 3 day(s) | |||
| 5947401 | 3GB6U123L | CCW | 7/8" X 1/4" Key | 1.4 | 10.45/20.91 | 3500 | 3800 | 600-3000 | #16 SAE | #12 SAE | $519.84 / EACH Usually ships in 3 day(s) | |||
| 5947403 | 3GB6U125R | CW | 7/8" X 1/4" Key | 1.52 | 11.35/22.7 | 3500 | 3800 | 600-3000 | #16 SAE | #12 SAE | $519.84 / EACH Usually ships in 3 day(s) | |||
| 5947405 | 3GB6U125L | CCW | 7/8" X 1/4" Key | 1.52 | 11.35/22.7 | 3500 | 3800 | 600-3000 | #16 SAE | #12 SAE | $519.84 / EACH Usually ships in 3 day(s) | |||
| 5947407 | 3GB6U128R | CW | 7/8" X 1/4" Key | 1.7 | 12.69/25.39 | 3500 | 3800 | 600-3000 | #16 SAE | #12 SAE | $519.84 / EACH Usually ships in 3 day(s) | |||
| 5947409 | 3GB6U128L | CCW | 7/8" X 1/4" Key | 1.7 | 12.69/25.39 | 3500 | 3800 | 600-3000 | #16 SAE | #12 SAE | $519.84 / EACH Usually ships in 3 day(s) | |||
| 5947411 | 3GB6U133R | CW | 7/8" X 1/4" Key | 2.01 | 11.35/22.7 | 3500 | 3800 | 600-3000 | #16 SAE | #12 SAE | $519.84 / EACH Usually ships in 3 day(s) | |||
| 5947413 | 3GB6U133L | CCW | 7/8" X 1/4" Key | 2.01 | 11.35/22.7 | 3500 | 3800 | 600-3000 | #16 SAE | #12 SAE | $519.84 / EACH Usually ships in 3 day(s) | |||
| 5947373 | 3GB6U238R | CW | 7/8" X 1/4" Key | 2.31 | 17.25/34.50 | 3500 | 3800 | 600-3000 | #20 SAE | #12 SAE | $519.84 / EACH Usually ships in 3 day(s) | |||
| 5947415 | 3GB6U238L | CCW | 7/8" X 1/4" Key | 2.31 | 17.25/34.50 | 3500 | 3800 | 600-3000 | #20 SAE | #12 SAE | $519.84 / EACH Usually ships in 3 day(s) | |||
| 5947417 | 3GB6U244R | CW | 7/8" X 1/4" Key | 2.68 | 20.01/40.03 | 3100 | 3400 | 600-3000 | #20 SAE | #12 SAE | $519.84 / EACH Usually ships in 3 day(s) | |||
| 5947387 | 3GB6U244L | CCW | 7/8" X 1/4" Key | 2.68 | 20.01/40.03 | 3100 | 3400 | 600-3000 | #20 SAE | #12 SAE | $519.84 / EACH Usually ships in 3 day(s) | |||
| 5947419 | 3GB6U252R | CW | 7/8" X 1/4" Key | 3.17 | 23.67/47.34 | 2800 | 3100 | 600-2500 | #20 SAE | #12 SAE | $519.84 / EACH Usually ships in 3 day(s) | |||
| 5947421 | 3GB6U252L | CCW | 7/8" X 1/4" Key | 3.17 | 23.67/47.34 | 2800 | 3100 | 600-2500 | #20 SAE | #12 SAE | $519.84 / EACH Usually ships in 3 day(s) | |||
| 5947423 | 3GB6U360R | CW | 7/8" X 1/4" Key | 3.66 | 27.33/54.66 | 2600 | 2800 | 600-2500 | #24 SAE | #16 SAE | $519.84 / EACH Usually ships in 3 day(s) |
