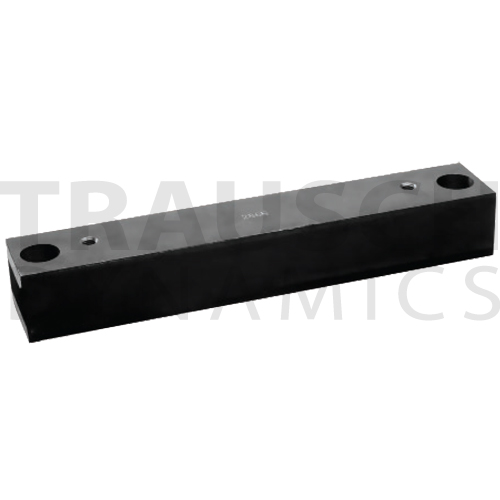

DAMPENING BARS - BOLT DOWN
- Motor Dampening Bars are designed to reduce vibration and structure borne noise levels from the motor to the mounting surface
- Average expected reduction of structure borne noise is 3 - 4 dBA
- Full mounting range for NEMA frame motors
- Two are required per motor
- Horizontal installation only
- Natural rubber vulcanized bonded to carbon steel
- Recommended operating temperature is -40°F to 167°F
- Caution: Not intended for use in vertical applications
| Image | Item # | Mfr. Number | Motor Size | Length | Height | Width | Tank Mounting Holes | Motor Mounting Holes | Motor Mount Thread size NC | Price | Order Qty. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1233018 | VSM-145-B | 145TC | 8.75" | 1.56" | 2" | 7.25" | 5" | 5/16-18 | $101.41 / EACH Usually ships in 3 day(s) |
| ||||
| 1233020 | VSM-184-B | 184TC | 9.75" | 1.56" | 2" | 5.25" | 1.56" | 3/8-16 | $102.35 / EACH Usually ships in 3 day(s) |
| ||||
| 1233023 | VSM-215-B | 215TC | 11.5" | 1.56" | 2" | 10" | 7" | 3/8-16 | $120.43 / EACH Usually ships in 3 day(s) |
| ||||
| 1233025 | VSM-254-B | 254TC | 13" | 1.75" | 2" | 11.5" | 8.25" | 1/2-13 | $122.83 / EACH Usually ships in 3 day(s) |
| ||||
| 1233027 | VSM-256-B | 256TC | 14.75" | 1.75" | 2" | 13.25" | 10" | 1/2-13 | $135.48 / EACH Usually ships in 3 day(s) |
| ||||
| 1233029 | VSM-284-B | 284TC/TSC | 14.5" | 2.38" | 2.75" | 12.75" | 9.5" | 1/2-13 | $185.80 / EACH Usually ships in 3 day(s) | |||||
| 1233031 | VSM-286-B | 286TC/TSC | 16" | 2.38" | 2.75" | 14.25" | 11" | 1/2-13 | $197.44 / EACH Usually ships in 3 day(s) | |||||
| 1233033 | VSM-324-B | 324TC/TSC | 16" | 2.38" | 3" | 14" | 10.5" | 5/8-11 | $248.83 / EACH Usually ships in 3 day(s) | |||||
| 1233035 | VSM-326-B | 326TC/TSC | 17.5" | 2.38" | 3" | 15.5" | 12" | 5/8-11 | $248.21 / EACH Usually ships in 3 day(s) | |||||
| 1233036 | VSM-364-B | 364TC/TSC | 17" | 2.38" | 3" | 15" | 11.25" | 5/8-11 | $268.97 / EACH Usually ships in 3 day(s) | |||||
| 1233038 | VSM-365-B | 365TC/TSC | 18" | 2.38" | 3" | 16" | 12.25" | 5/8-11 | $248.66 / EACH Usually ships in 3 day(s) | |||||
| 1233041 | VSM-444-B | 444TC/TSC | 23" | 2.38" | 4.5" | 20.75" | 14.5" | 3/4-10 | $486.32 / EACH Usually ships in 3 day(s) | |||||
| 1233043 | VSM-445-B | 445TC/TSC | 26" | 2.38" | 4.5" | 23.75" | 16.5" | 3/4-10 | $498.91 / EACH Usually ships in 3 day(s) | |||||
| 1233045 | VSM-56-B | 56C | 7.25" | 1.56" | 2" | 5.75" | 3" | 5/16-18 | $90.52 / EACH Usually ships in 3 day(s) |
| ||||
