52 Series

Name: Trausch Dynamics
Address: 3727 Westgate Road, Grand Island, NE, 68803
Telephone: 800-323-5749

Catalog Pages

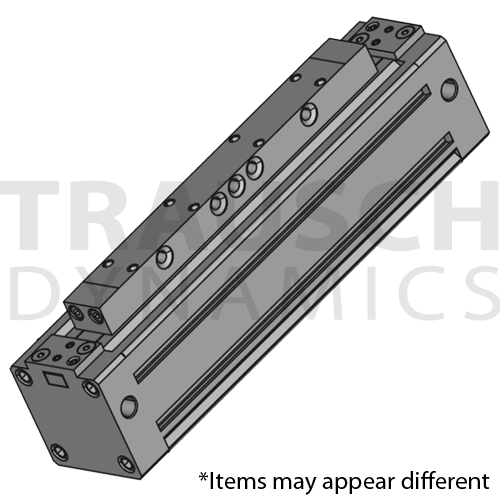

Rodless Cylinders
Series 52 available in 25mm, 32mm, 40mm, 50mm, & 63mm bore sizes
Double-acting, Cushioned
Three main versions: (M) Basic, (G) Slide bearing & (R) Roller bearing
Extra short carriage as option for all version
Anodized AL, plastic, hardened steel
Seals: Buna-N & Polyurethane
Up to 6000mm Stroke Range
14-160°F Operating Temp

*** Slide table left/right to view more ***

Item	Order Qty.	Mfr. Number	Version	Operation	Material	Bore	Construction	Stroke	Seals
6079273 52G2P50A0900 Camozzi Cylinder, Series 52	$3,656.02/each Usually ships in 5-6 weeks	52G2P50A0900	With Side Bearing	Double-Acting (Front & Rear Cushioned) with Air Supply from Both Sides	P	50 mm	Standard	900 mm	Standard
6079274 52G2P50A1000 Camozzi Cylinder, Series 52	$3,731.36/each Usually ships in 5-6 weeks	52G2P50A1000	With Side Bearing	Double-Acting (Front & Rear Cushioned) with Air Supply from Both Sides	P	50 mm	Standard	1000 mm	Standard
6079275 52G2P63A1600 Camozzi Cylinder, Series 52	$5,875.37/each Usually ships in 5-6 weeks	52G2P63A1600	With Side Bearing	Double-Acting (Front & Rear Cushioned) with Air Supply from Both Sides	P	63 mm	Standard	1600 mm	Standard
6079276 52G2P63A1800 Camozzi Cylinder, Series 52	$6,088.67/each Usually ships in 5-6 weeks	52G2P63A1800	With Side Bearing	Double-Acting (Front & Rear Cushioned) with Air Supply from Both Sides	P	63 mm	Standard	1800 mm	Standard
6079277 52G2P63A1900 Camozzi Cylinder, Series 52	$6,195.31/each Usually ships in 5-6 weeks	52G2P63A1900	With Side Bearing	Double-Acting (Front & Rear Cushioned) with Air Supply from Both Sides	P	63 mm	Standard	1900 mm	Standard
6079278 52G8C25A0200 Camozzi Cylinder, Series 52	$1,325.74/each Usually ships in 5-6 weeks	52G8C25A0200	With Side Bearing	Double-Acting (Front & Rear Cushioned) with Air Supply from One Sides Only	C	25 mm	Standard	200 mm	Standard
6079279 52G8P32A0915 Camozzi Cylinder, Series 52	$1,612.90/each Usually ships in 5-6 weeks	52G8P32A0915	With Side Bearing	Double-Acting (Front & Rear Cushioned) with Air Supply from One Sides Only	P	32 mm	Standard	915 mm	Standard
6079280 52M2C25A0390 Camozzi Cylinder, Series 52	$744.71/each Usually ships in 5-6 weeks	52M2C25A0390	Magnetic	Double-Acting (Front & Rear Cushioned) with Air Supply from Both Sides	C	25 mm	Standard	390 mm	Standard
6079281 52M2C25A1275 Camozzi Cylinder, Series 52	$990.92/each Usually ships in 5-6 weeks	52M2C25A1275	Magnetic	Double-Acting (Front & Rear Cushioned) with Air Supply from Both Sides	C	25 mm	Standard	1275 mm	Standard
6079282 52M2C25A5600 Camozzi Cylinder, Series 52	$2,194.17/each Usually ships in 5-6 weeks	52M2C25A5600	Magnetic	Double-Acting (Front & Rear Cushioned) with Air Supply from Both Sides	C	25 mm	Standard	5600 mm	Standard
6079283 52M2C32A0120 Camozzi Cylinder, Series 52	$795.58/each Usually ships in 5-6 weeks	52M2C32A0120	Magnetic	Double-Acting (Front & Rear Cushioned) with Air Supply from Both Sides	C	32 mm	Standard	120 mm	Standard
6079284 52M2C40A0055 Camozzi Cylinder, Series 52	$797.33/each Usually ships in 5-6 weeks	52M2C40A0055	Magnetic	Double-Acting (Front & Rear Cushioned) with Air Supply from Both Sides	C	40 mm	Standard	55 mm	Standard
6079285 52M2C40A0550 Camozzi Cylinder, Series 52	$1,049.81/each Usually ships in 5-6 weeks	52M2C40A0550	Magnetic	Double-Acting (Front & Rear Cushioned) with Air Supply from Both Sides	C	40 mm	Standard	550 mm	Standard
6079286 52M2C63A1450 Camozzi Cylinder, Series 52	$3,700.38/each Usually ships in 5-6 weeks	52M2C63A1450	Magnetic	Double-Acting (Front & Rear Cushioned) with Air Supply from Both Sides	C	63 mm	Standard	1450 mm	Standard
6079287 52M2C63A2100 Camozzi Cylinder, Series 52	$4,393.58/each Usually ships in 5-6 weeks	52M2C63A2100	Magnetic	Double-Acting (Front & Rear Cushioned) with Air Supply from Both Sides	C	63 mm	Standard	2100 mm	Standard
