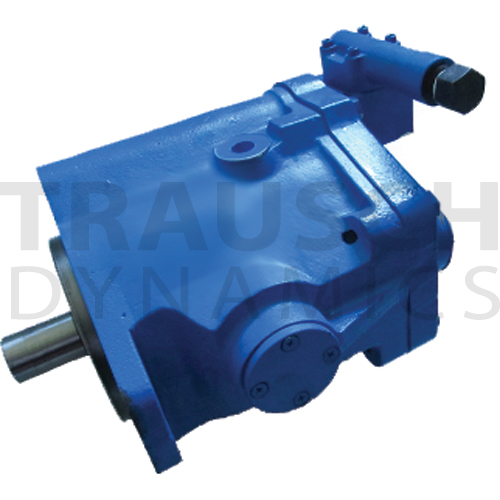

PVB 20
- Axial Piston Pump
- Up to 3000 PSI
- 100% Tested
- Pressure Compensator
- 1800 RPM Maximum
- System Temperature Range: -4°F to +176°F
- 70-1020 SSU Viscocity Range
- 6 Micron Filtration Recommended
- Ratings based on the use of anti-wear hydraulic fluid. For more information on the use of other fluids, contact us for assistance.
- PVB 20 - SAE 'C' 2-Bolt, 7.13" Bolt Centers, 1-1/4" Keyed Shaft, 5/16" Key, 2.32" Shaft Length
- Clockwise rotation puts the inlet on the left side when viewing the pump from the rear with the compensator on the top
- *Not all models are listed. Please call us and ask for a sales representative if the model you seek is not shown here.
| Image | Item # | Description | Price | Order Qty. | ||
|---|---|---|---|---|---|---|
| 6190097 | PVB20-RS-21-C-11 VICKERS REPLACEMENT, PISTON PUMP, 2.61 IN3 DISPLACEMENT, CLOCKWISE ROTATION, 1-1/4" KEYED SHAFT, 5/1... | $1,204.56 / EACH Ships next business day | |||
| 6190100 | PVB20-LS-21-C-11 VICKERS REPLACEMENT, PISTON PUMP, 2.61 IN3 DISPLACEMENT, COUNTER-CLOCKWISE ROTATION, 1-1/4" KEYED SH... | $1,204.56 / EACH Ships next business day | |||
| 6190103 | PVB20-RS-21-CM-11 VICKERS REPLACEMENT, PISTON PUMP, 2.61 IN3 DISPLACEMENT, CLOCKWISE ROTATION, 1-1/4" KEYED SHAFT, 5/... | $1,204.56 / EACH Ships next business day | |||
| 6190106 | PVB20-LS-21-CM-11 VICKERS REPLACEMENT, PISTON PUMP, 2.61 IN3 DISPLACEMENT, COUNTER-CLOCKWISE ROTATION, 1-1/4" KEYED S... | $1,204.56 / EACH Ships next business day | |||
| 6190109 | PVB20-RS-21-CC-11 VICKERS REPLACEMENT, PISTON PUMP, 2.61 IN3 DISPLACEMENT, CLOCKWISE ROTATION, 1-1/4" KEYED SHAFT, 5/... | $1,362.48 / EACH Ships next business day | |||
| 6190112 | PVB20-LS-21-CC-11 VICKERS REPLACEMENT, PISTON PUMP, 2.61 IN3 DISPLACEMENT, COUNTER-CLOCKWISE ROTATION, 1-1/4" KEYED S... | $1,362.48 / EACH Ships next business day | |||
| 6190115 | PVB20-RS-21-CMC-11 VICKERS REPLACEMENT, PISTON PUMP, 2.61 IN3 DISPLACEMENT, CLOCKWISE ROTATION, 1-1/4" KEYED SHAFT, 5... | $1,362.48 / EACH Ships next business day | |||
| 6190118 | PVB20-LS-21-CMC-11 VICKERS REPLACEMENT, PISTON PUMP, 2.61 IN3 DISPLACEMENT, COUNTER-CLOCKWISE ROTATION, 1-1/4" KEYED ... | $1,362.48 / EACH Ships next business day |
