2W FLOW CONTROL - PRESSURE COMPENSATED - NORMALLY CLOSED POPPET

Proportional Control valves generate a variable pressure in response to a PWM (Pulse Width Modulated) current signal.

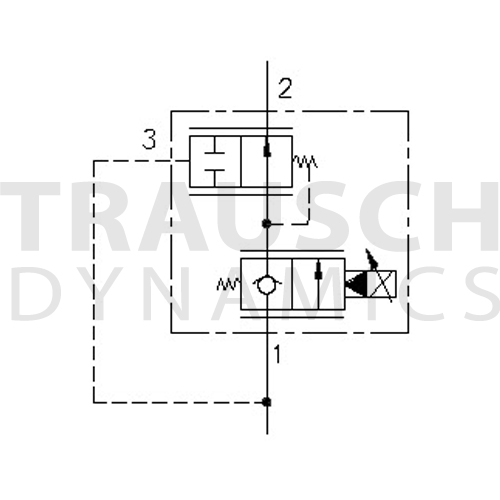

2 Way Flow Control
Pressure Compensated - Normally Closed - Poppet
Valve maintains a constant flow rate out of (2) regardless of load pressure variatitons in the circuit downstream of (1)
When coil is not energized, there is no regulated flow out of (2)
The valve beegins to respond to load variations when the flow through the valve creates a pressure differential across the control spool
Reverse flow from (2) to (1) returns through the control spool and is not compensated
The manual override increases flow by counter-clockwise rotation of the manual override knob
Hardened parts for long life
Excellent linearity and low hysteresis characteristics
Cartridges are voltage interchangeable
Industry common cavity
Unitized, molded coil design
Continuous duty rated solenoid
Optional coil voltages and terminations
Option of operation of manual override
Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
