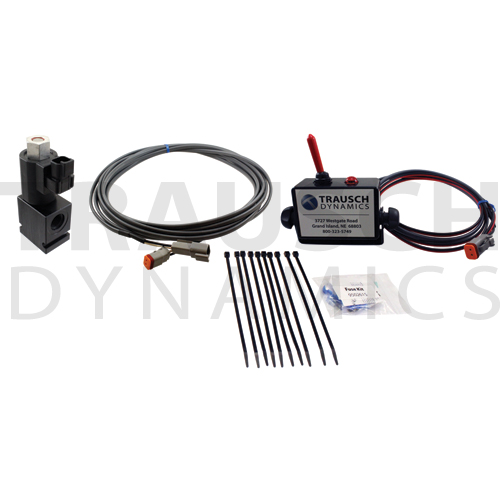

ON-OFF VALVES WITH SWITCH KITS
- 15GPM Valves 30 ft-lbs Cartridge Valve Torque Requirements
- 30&40GPM Valves 90 ft-lbs Cartridge Valve Torque Requirements
- 4-6 ft-lbs Coil Nut Torque Requirements
- -40 Degree F to +250 Degree F
- Coil Immersion Proof, Weatherproof, and Thermal Shock Proof
- No External Metal Shell on Coil
- Continuous Duty
- 20' Wiring Harness
- 16 Gauge Wire
- Shielded Wire
- IP69 Deutsch Connectors
- 3.25"X2.25"X1.5" Black Switch Box
- Easily Adjustable Bail Mount
- Heavy Duty 10 Amp Long Bat Detent Switch
- Red Switch Cover
- Indicator Light
- 3' Switch Box Wiring Harness
- 6' Power Cable
- 10 Amp Fuse Kit with Instructions
- (10) 7.5" Cable Ties
| Image | Item # | Circuit | Maximum Flow | Maximum Pressure | Amp | Voltage | Port Size | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 9504615 | Normally Open | 15 GPM | 3500 PSI | 1.8 | 12 VDC | #8 SAE O-Ring | $195.86 / EACH Ships same day | |||
 | 9504616 | Normally Closed | 15 GPM | 3500 PSI | 1.8 | 12 VDC | #8 SAE O-Ring | $182.36 / EACH Ships same day | |||
 | 9504617 | Normally Open | 40 GPM | 3000 PSI | 1.8 | 12 VDC | #12 SAE O-Ring | $254.81 / EACH Ships same day | |||
 | 9504618 | Normally Closed | 30 GPM | 3500 PSI | 1.8 | 12 VDC | #12 SAE O-Ring | $245.14 / EACH Ships same day |
