Conduit Box

Conduit Box

  • 4570 Maximum PSI (Tandem Center is 3630 Maximum PSI)
  • 31.7 Maximum GPM*
  • 2320 Maximum PSI on Tank Core
  • Mounting Surface: D05
  • UL, CSA, CE Approvals
  • Conduit Box Electrical Option has standard Indication Lights
  • DIN Connector Electrical Option Comes with DIN Connectors
  • All Models Ship with Mounting Bolts
  • Manual Override Standard
  • *Consult a Sales Representative for Application Assistance

*** Slide table left/right to view more ***

Item Order Qty. Mfr. Number Electrical Termination Inrush Amps Holding Amps

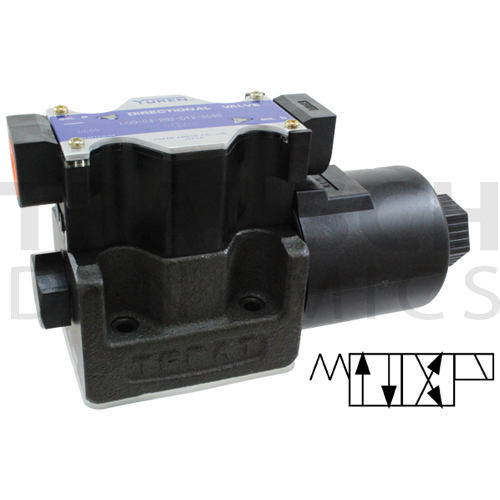

DSG-03-2B2-D12-5090 Yuken, Hydraulic, valve, D05, criss-cross 2P4W (spring offset, P to A, B to T), 12VDC, 4570 PSI, conduit box with indicator light, bolts included. Replaces Monarch 00475.

7050233

DSG-03-2B2-D12-5090 Yuken, Hydraulic, valve,...

$191.52/each

In stock - Ships same day

DSG-03-2B2-D12-5090 12 VDC Conduit Box - 3.16
DSG-03-2B2-D24-5090 Yuken, Hydraulic, valve, D05, criss-cross 2P4W (spring offset, P to A, B to T), 24VDC, 4570 PSI, conduit box with indicator light, bolts included. Replaces Monarch 00480.

7050248

DSG-03-2B2-D24-5090 Yuken, Hydraulic, valve,...

$191.52/each

In stock - Ships same day

DSG-03-2B2-D24-5090 24 VDC Conduit Box - 1.57
DSG-03-2B2-A120-5090 Yuken, Hydraulic, valve, D05, criss-cross 2P4W (spring offset, P to A, B to T), 120VAC, 4570 PSI, conduit box with indicator light, bolts included. Replaces Monarch 01064.

7050132

DSG-03-2B2-A120-5090 Yuken, Hydraulic, valve...

$191.52/each

In stock - Ships same day

DSG-03-2B2-A120-5090 120 VAC Conduit Box 3.81 0.52

*** Slide table left/right to view more ***

Page 1 of 1
