REDUCING/RELIEVING - PILOT OPERATED
- Mechanical Pressure Control Valves
- Reducing/Relieving
- Pilot Operated

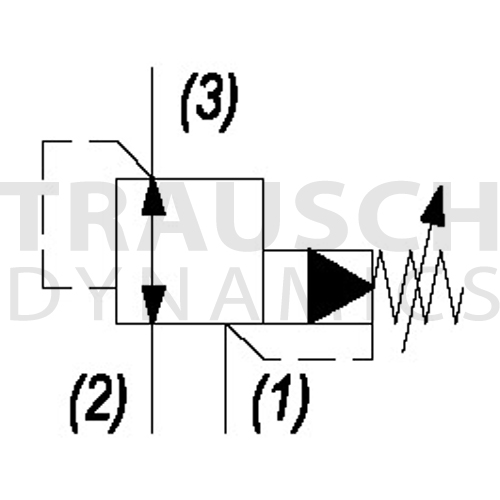

- The valve in its steady state, allows flow to pass from (2) to (3), with the spring chamber constantly drained at (1)
- When a pre-determined pressure is reached at (3), the spool shifts to restrict input flow at (2), thereby reducing (restricting) flow
- If valve and pressure at port (3) exceeds setting, spool shift to open passage at port (1), thereby regulating pressure at port (3) by relieving excess flow
- The cartridge offers smooth transition in response to load changes in common hydraulic circuits
- Hardened parts for long life
- Industry common cavity
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Options | Pressure Range | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7011097 | DF-PRP-00-3000 | 10 | 3000 | 7/8-14 | Buna | -0 | 100-3000 PSI | $62.00 / EACH In stock - Ships same day | |||
 | 7011098 | DF-PRP-0K-3000 | 10 | 3000 | 7/8-14 | Buna | Override Knob | 100-3000 PSI | $70.50 / EACH In stock - Ships same day | |||
 | 7011911 | DF-PRP-V0-3000 | 10 | 3000 | 7/8-14 | Viton | -0 | 100-3000 PSI | $66.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011912 | DF-PRP-VK-3000 | 10 | 3000 | 7/8-14 | Viton | Override Knob | 100-3000 PSI | $74.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011269 | SK-PRP-00-3000 | 20 | 3000 | 1 5/16-12 | Buna | -0 | 500-3000 PSI | $122.50 / EACH In stock - Ships same day | |||
 | 7011914 | SK-PRP-0I-3000 | 20 | 3000 | 1 5/16-12 | Buna | Internal Adjust | 500-3000 PSI | $122.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011270 | SK-PRP-0K-3000 | 20 | 3000 | 1 5/16-12 | Buna | Override Knob | 500-3000 PSI | $78.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011916 | SK-PRP-V0-3000 | 20 | 3000 | 1 5/16-12 | Viton | -0 | 500-3000 PSI | $150.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011917 | SK-PRP-VI-3000 | 20 | 3000 | 1 5/16-12 | Viton | Internal Adjust | 500-3000 PSI | $150.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011918 | SK-PRP-VK-3000 | 20 | 3000 | 1 5/16-12 | Viton | Override Knob | 500-3000 PSI | $155.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011921 | DF-PWP-0I-4000 | 10 | 4000 | 7/8-14 | Buna | Internal Adjust | 100-4000 PSI | $67.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011922 | DF-PWP-0K-4000 | 10 | 4000 | 7/8-14 | Buna | Override Knob | 100-4000 PSI | $75.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011924 | DF-PWP-VI-4000 | 10 | 4000 | 7/8-14 | Viton | Internal Adjust | 100-4000 PSI | $75.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011925 | DF-PWP-VK-4000 | 10 | 4000 | 7/8-14 | Viton | Override Knob | 100-4000 PSI | $82.50 / EACH Usually ships in 5 week(s). Expedite available. |
