Hydraulic Hose - 4 & 6 spiral

Hydraulic Hose - 4 & 6 spiral

  • Hydraulic Hose
  • 4 & 6 Spiral Hose
  • H430
  • SAE 100R12 ABS
  • MSHA Accepted
  • For Construction, Mining, Farming, or Industrial Hydraulic Lines
  • High Temperature: -40°F to +250°F
  • Uses 430 'U' Series Hose Ends
  • Will NOT be able to get any more in once out of stock
  • Consult with a sales representative for inventory questions
  • Email: info@hydraulicstore.com
  • Phone: 800-323-5749

*** Slide table left/right to view more ***

Item Order Qty.

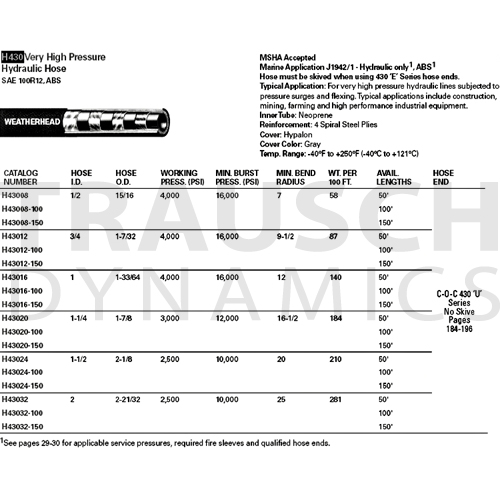

Connector hose hydraulic 4&6 spiral, H430 very high pressure SAE 100R12 ABS hydraulic hose, MSHA accepted, marine J1942/1-hydraulic only, for construction, mining, farming, industrial hydraulic lines subjected to pressure surges and flexing, inner tube: neoprene, reinforcement: 4 spiral steel plies, cover: gray hypalon, temperature range: -40F to +250F (-40C to +121C) crimp fitting required: 430"U" series, avail- able lengths: 150', 100', 50' or less than 50', working pressure: 4000 PSI, 1/2" ID, 15/16" OD. H43008 ** OVERSTOCK ** Will not be able to order more. Please contact a sales representative for inventory questions.

2102800

Connector hose hydraulic 4&6 spiral, H430 very high pressure SAE 100R12 ABS hydraulic hose, MSHA accepted, marine J1942/1-hydraulic only, for construction, mining, farming, industrial hydraulic lines subjected to pressure surges and flexing, inner tube: neoprene, reinforcement: 4 spiral steel...

$6.37/foot

In stock - Ships same day

Connector hose hydraulic 4&6 spiral, H430 very high pressure SAE 100R12 ABS hydraulic hose, MSHA accepted, marine J1942/1-hydraulic only, for construction, mining, farming, industrial hydraulic lines subjected to pressure surges and flexing, inner tube: neoprene, reinforcement: 4 spiral steel plies, cover: gray hypalon, temperature range: -40F to +250F (-40C to +121C) crimp fitting required: 430"U" series, avail- able lengths: 150', 100', 50' or less than 50', working pressure: 3000 PSI, 1-1/4" ID, 1-7/8" OD. H43020 ** OVERSTOCK ** Will not be able to order more. Please contact a sales representative for inventory questions.

2102809

Connector hose hydraulic 4&6 spiral, H430 very high pressure SAE 100R12 ABS hydraulic hose, MSHA accepted, marine J1942/1-hydraulic only, for construction, mining, farming, industrial hydraulic lines subjected to pressure surges and flexing, inner tube: neoprene, reinforcement: 4 spiral steel...

$17.79/foot

In stock - Ships same day

Connector hose hydraulic 4&6 spiral, H430 very high pressure SAE 100R12 ABS hydraulic hose, MSHA accepted, marine J1942/1-hydraulic only, for construction, mining, farming, industrial hydraulic lines subjected to pressure surges and flexing, inner tube: neoprene, reinforcement: 4 spiral steel plies, cover: gray hypalon, temperature range: -40F to +250F (-40C to +121C) crimp fitting required: 430"U" series, avail- able lengths: 150', 100', 50' or less than 50', working pressure: 2500 PSI, 2" ID, 2-21/32" OD. H43032 ** OVERSTOCK ** Will not be able to order more. Please contact a sales representative for inventory questions.

2102815

Connector hose hydraulic 4&6 spiral, H430 very high pressure SAE 100R12 ABS hydraulic hose, MSHA accepted, marine J1942/1-hydraulic only, for construction, mining, farming, industrial hydraulic lines subjected to pressure surges and flexing, inner tube: neoprene, reinforcement: 4 spiral steel...

$35.49/foot

In stock - Ships same day

Connector hose hydraulic 4&6 spiral, H470 very high pressure hydraulic hose, MSHA accepted, marine application J1942/1, for construction, mining, farming, industrial hydraulic lines subjected to pressure surges and flexing, inner tube: neoprene, reinforcement: 4 spiral steel plies, cover: black EPDM, temperature range: -40F to +212F (-40C to +100C) crimp fitting required: 470"E" series, avail- able lengths: 50' or less than 50", working pressure: 5000 PSI, 1/2" ID, 31/32" OD. H47008 ** OVERSTOCK ** Will not be able to order more. Please contact a sales representative for inventory questions.

2103010

Connector hose hydraulic 4&6 spiral, H470 very high pressure hydraulic hose, MSHA accepted, marine application J1942/1, for construction, mining, farming, industrial hydraulic lines subjected to pressure surges and flexing, inner tube: neoprene, reinforcement: 4 spiral steel plies, cover: blac...

$9.43/foot

In stock - Ships same day

Connector hose hydraulic 4&6 spiral, H470 very high pressure SAE 100R13 hydraulic hose, MSHA accepted, marine application J1942/1, for construction, mining, farming, industrial hydraulic lines subjected to pressure surges and flexing, inner tube: neoprene, reinforcement: 4 spiral steel plies, cover: brown EPDM, temperature range: -40F to +250F (-40C to +121C) crimp fitting required: 470"E", 570"S" series, available lengths: 50' or less than 50', working pressure: 5000 PSI, 3/4" ID, 1-1/4" OD. H47012 ** OVERSTOCK ** Will not be able to order more. Please contact a sales representative for inventory questions.

2103013

Connector hose hydraulic 4&6 spiral, H470 very high pressure SAE 100R13 hydraulic hose, MSHA accepted, marine application J1942/1, for construction, mining, farming, industrial hydraulic lines subjected to pressure surges and flexing, inner tube: neoprene, reinforcement: 4 spiral steel plies,...

$17.89/foot

In stock - Ships same day

Connector hose hydraulic 4&6 spiral, H470 very high pressure SAE 100R13 hydraulic hose, MSHA accepted, marine application J1942/1, for construction, mining, farming, industrial hydraulic lines subjected to pressure surges and flexing, inner tube: neoprene, reinforcement: 4 spiral steel plies, cover: brown EPDM, temperature range: -40F to +250F (-40C to +121C) crimp fitting required: 470"E", 570"S" series, available lengths: 50' or less than 50', working pressure: 5000 PSI, 1" ID, 1-17/32" OD. H47016 ** OVERSTOCK ** Will not be able to order more. Please contact a sales representative for inventory questions.

2103016

Connector hose hydraulic 4&6 spiral, H470 very high pressure SAE 100R13 hydraulic hose, MSHA accepted, marine application J1942/1, for construction, mining, farming, industrial hydraulic lines subjected to pressure surges and flexing, inner tube: neoprene, reinforcement: 4 spiral steel plies,...

$26.18/foot

In stock - Ships same day

Connector hose hydraulic 4&6 spiral, H470 very high pressure SAE 100R13 hydraulic hose, MSHA accepted, for construction, mining, farming, industrial hydraulic lines subjected to pressure surges and flexing, inner tube: neoprene, reinforcement: 6 spiral steel plies, cover: brown EPDM, temperature range: -40F to +250F (-40C to +121C) crimp fitting required: 470"E", 570"S" series, available lengths: 50' or less than 50', working pressure: 5000 PSI, 2" ID, 2-13/16" OD. H47032 ** OVERSTOCK ** Will not be able to order more. Please contact a sales representative for inventory questions.

2103025

Connector hose hydraulic 4&6 spiral, H470 very high pressure SAE 100R13 hydraulic hose, MSHA accepted, for construction, mining, farming, industrial hydraulic lines subjected to pressure surges and flexing, inner tube: neoprene, reinforcement: 6 spiral steel plies, cover: brown EPDM, temperatu...

$57.72/foot

In stock - Ships same day

*** Slide table left/right to view more ***

Page 1 of 1
