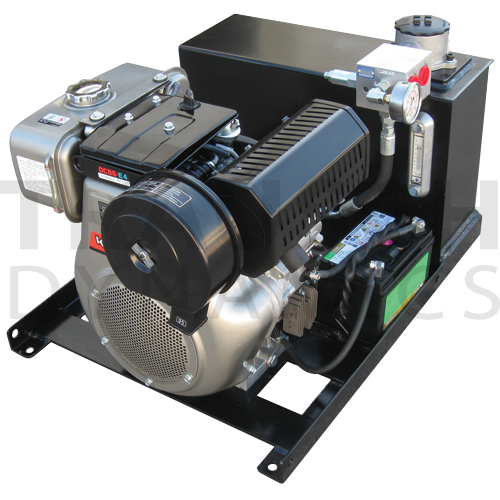

LOWBOY POWER UNIT - KUBOTA DIESEL
- Technical Page
- Pressure and Tank power unit
- Designed for use on a Lowboy trailer or detached trailer
- Takes place of a hydraulic wet kit on a semi
- 9.5 HP Kubota Diesel Engine
- Electric Start
- Battery Included
- 4.6 GPM Maximum
- 3000 PSI Maximum
- 100-3000 PSI Adjustable Relief Valve
- Relief Valve is Preset to Power Unit's Maximum Pressure Capability
- #12 SAE O-Ring Ports
- #8 SAE O-Ring Tank Drain Plug
- Aluminum Body Gear Pump
- 12 Gallon Nominal, 10 Gallon Usable Tank
- 0-5000 PSI Liquid Filled Pressure Gauge
- Filler Breather Integral
- 10 Micron Return filter
- 5" Level Sight/Temperature Gauge
- 4 Hole Bolt Down on Frame
- Painted Black
- Fully Tested Before Shipment
- Engine Oil Onboard
- Anti-Wear ISO 46 Hydraulic Oil Recommended, ATF Satisfactory
- Replacement Components Available from stock
| Image | Item # | HP | Engine Start | Performance GPM @ PSI | Pump Style | Oil Alert | Dimensions L x W x H | Dry Unit Wt. | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 9505609 | 9.5 | Electric | 4.6 GPM @ 3000 PSI | Gear | Yes | 32.50" x 23.75" x 19.50" | 260 lbs. | $6,261.49 / EACH In stock - Ships same day |
