PRESSURE COMPENSATOR - RESTRICTIVE (POST-COMPENSATION)
- Mechanical Pressure Control Valves
- Pressure Compensator
- Restrictive (Post-Compensation)

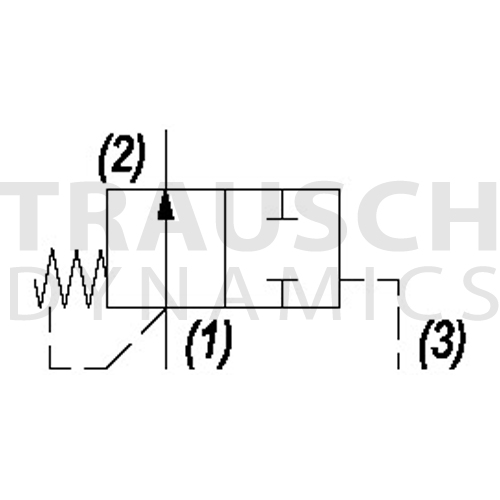

- The valve with an external orfice in front of port (1) allows compensated flow from (1) to (2), regulated by the pressure present at (3)
- or The valve allows pressure compensated flow from (1) to (2) regulated pressure present at (3)
- The spring chamber is constantly vented at (1)
- Pressure differential between (1) and (3) is fixed at 8/24 bar
- These are minimum values increasing with flow because of the pressure drop through the valve
- Hardened parts for long life
- Industry common cavity
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Options | Pressure | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7011093 | DF-PCS-00-0150 | 10 | 3500 | 7/8-14 | Buna | -0 | 150 PSI Press Differential | $39.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011595 | DF-PCS-00-0450 | 10 | 3500 | 7/8-14 | Buna | -0 | 450 PSI Press Differential | $39.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011596 | DF-PCS-V0-0150 | 10 | 3500 | 7/8-14 | Viton | -0 | 150 PSI Press Differential | $47.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011597 | DF-PCS-V0-0450 | 10 | 3500 | 7/8-14 | Viton | -0 | 450 PSI Press Differential | $47.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7012067 | DF-PCT-00-0300 | 10 | 3500 | 7/8-14 | Buna | -0 | 50-300 PSI Press Range | $55.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7012068 | DF-PCT-0I-0300 | 10 | 3500 | 7/8-14 | Buna | Internal Adjust | 50-300 PSI Press Range | $55.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7012069 | DF-PCT-0K-0300 | 10 | 3500 | 7/8-14 | Buna | Override Knob | 50-300 PSI Press Range | $63.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7012071 | DF-PCT-V0-0300 | 10 | 3500 | 7/8-14 | Viton | -0 | 50-300 PSI Press Range | $63.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7012072 | DF-PCT-VI-0300 | 10 | 3500 | 7/8-14 | Viton | Internal Adjust | 50-300 PSI Press Range | $63.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7012073 | DF-PCT-VK-0300 | 10 | 3500 | 7/8-14 | Viton | Override Knob | 50-300 PSI Press Range | $63.00 / EACH Usually ships in 5 week(s). Expedite available. |
