RESTRICTIVE FLOW REGULATORS - PRESSURE COMPENSATED - ADJUSTABLE
- Mechanical Flow Control Valves
- Restrictive Flow Regulators
- Pressure Compensated - Adjustable

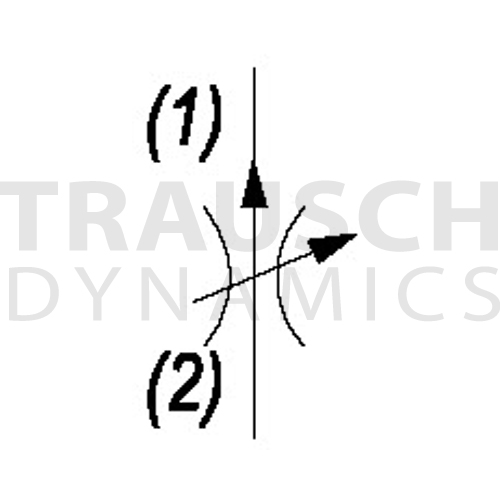

- The cartridge maintains a constant flow rate out of (1) regardless of load pressure changes in the circuit downstream of (1)
- The adjustable control differential spring load (or orifice) can be set to customer flow specification
- The valve begins to respond to load changes when the flow through the valve creates a pressure differential from (2) to (1), greater than 200 PSI, with accurate flow maintenance from 200 to 3500 PSI or creates a pressure differential across the control orifice greater than 100 PSI, with accurate flow maintenance from 100 to 3500 PSI
- Reverse flow (1) to (2) returns through the control orifice and is non-compensated
- The regulated flow increases from low to high with clockwise (or conterclockwise) rotation of the adjustment knob
- Hardened parts for long life
- Industry common cavity
- Fine low-torque adjustment
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Options | Pressure Flow | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010426 | MA-FCA-00-0.17 | 3 | 3000 | 5/8-18 | Buna | - | 0.08-0.17 GPM Flow | $41.75 / EACH Usually ships in 11 week(s) | |||
 | 7010425 | MA-FCA-00-00.5 | 3 | 3000 | 5/8-18 | Buna | - | 0.25-0.50 GPM Flow | $41.75 / EACH Usually ships in 11 week(s) | |||
 | 7010428 | MA-FCA-00-00.9 | 3 | 3000 | 5/8-18 | Buna | - | 0.50-0.90 GPM Flow | $41.75 / EACH Usually ships in 11 week(s) | |||
 | 7010751 | MA-FCA-00-01.5 | 3 | 3000 | 5/8-18 | Buna | - | 0.9-1.50 GPM Flow | $41.75 / EACH Usually ships in 11 week(s) | |||
 | 7010816 | MA-FCA-0K-0.17 | 3 | 3000 | 5/8-18 | Buna | Override Knob | 0.08-0.17 GPM Flow | $50.75 / EACH Usually ships in 11 week(s) | |||
 | 7010817 | MA-FCA-0K-00.5 | 3 | 3000 | 5/8-18 | Buna | Override Knob | 0.25-0.50 GPM Flow | $50.75 / EACH Usually ships in 11 week(s) | |||
 | 7010818 | MA-FCA-0K-00.9 | 3 | 3000 | 5/8-18 | Buna | Override Knob | 0.50-0.90 GPM Flow | $50.75 / EACH Usually ships in 11 week(s) | |||
 | 7010821 | MA-FCA-V0-0.17 | 3 | 3000 | 5/8-18 | Viton | - | 0.08-0.17 GPM Flow | $47.75 / EACH Usually ships in 11 week(s) | |||
 | 7010822 | MA-FCA-V0-00.5 | 3 | 3000 | 5/8-18 | Viton | - | 0.25-0.50 GPM Flow | $47.75 / EACH Usually ships in 11 week(s) | |||
 | 7010823 | MA-FCA-V0-00.9 | 3 | 3000 | 5/8-18 | Viton | - | 0.50-0.90 GPM Flow | $47.75 / EACH Usually ships in 11 week(s) | |||
 | 7010826 | MA-FCA-VK-0.17 | 3 | 3000 | 5/8-18 | Viton | Override Knob | 0.08-0.17 GPM Flow | $59.25 / EACH Usually ships in 11 week(s) | |||
 | 7010827 | MA-FCA-VK-00.5 | 3 | 3000 | 5/8-18 | Viton | Override Knob | 0.25-0.50 GPM Flow | $59.25 / EACH Usually ships in 11 week(s) | |||
 | 7010828 | MA-FCA-VK-00.9 | 3 | 3000 | 5/8-18 | Viton | Override Knob | 0.50-0.90 GPM Flow | $59.50 / EACH Usually ships in 11 week(s) | |||
 | 7011345 | PB-FCA-00-0.45 | 4 | 3500 | 3/4-16 | Buna | - | 0.25-0.45 GPM Flow | $62.00 / EACH Usually ships in 11 week(s) | |||
 | 7010561 | PB-FCA-00-0.75 | 4 | 3500 | 3/4-16 | Buna | - | 0.45-0.75 GPM Flow | $62.00 / EACH Usually ships in 11 week(s) |
