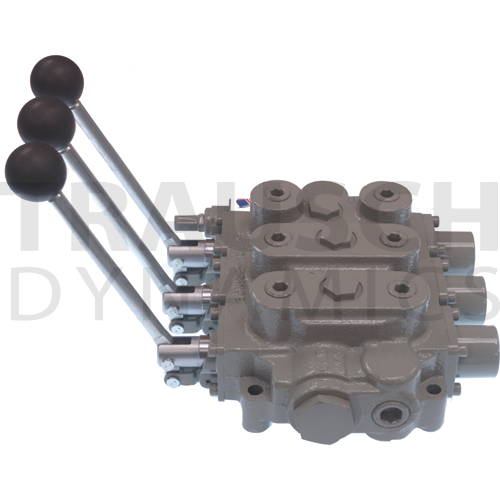

- 1, 2, & 3 work sections per monoblock
- Load hold check on each spool
- Open or closed center capability
- Power beyond capability
- Hard chrome plated spools
- Body is high strength cast iron
- Seals are Buna "N"
- Parallel circuit
- Max flow rate 25 GPM
(Single spool can handle 30 GPM) - Max PSI at "P" port = 3000 PSI
- Max PSI at work ports = 3000 PSI
- Max PSI back-pressure at "T" ports = 500 PSI
- Max Operating Temperature = 180°F
- Filter oil to 30 micron or better
- Adjustable differential poppet style relief valve (1500-3000 PSI)
- Reversible handle
- S.A. = Single-Acting
- D.A. = Double-Acting
