2W2P Normally Closed, Soft Seat - Pilot Operated Poppet

2W2P Normally Closed, Soft Seat - Pilot Operated Poppet

  • Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical poppet.
  • 2 Way 2 Position
  • Normally Closed
  • Soft Seat - Pilot Operated Poppet

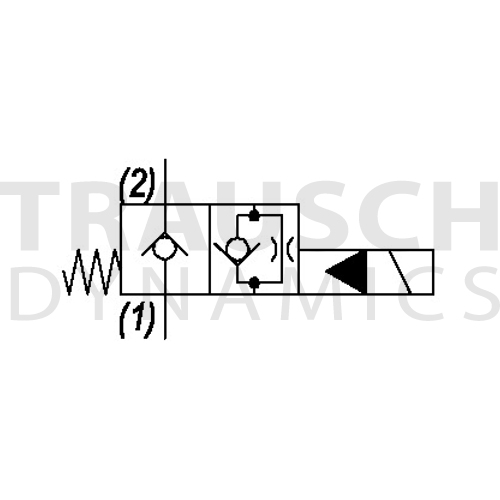

  • When de-energized, the valve blocks flow from (1) to (2) and allows reverse flow from (2) to (1).
  • When Energized, the valve allows flow from (1) to (2) and restricts flow from (2) to (1).
  • Soft seat for ultra low leakage
  • Efficient wet-armature construction
  • Cartridges are voltage interchangeable
  • Industry common cavity
  • Unitized, molded coil design
  • Continuous duty rated solenoid
  • Optional coil voltage and terminations
  • Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.

*** Slide table left/right to view more ***

Item Order Qty. Mfr. Number GPM PSI Size Seals Options
DE-S2F-00 Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Soft Seat, Delta Series 10 Size, 7/8-14 Thread, w/ Buna Seals, DE S2F 00, DES2F00

7010149

DE-S2F-00 Delta Power, 2W2P Normally Closed...

$48.50/each

In stock - Ships same day

DE-S2F-00 10 1000 7/8-14 Buna -0

*** Slide table left/right to view more ***

Page 1 of 1
