RESTRICTIVE FLOW REGULATORS - PRESSURE COMPENSATED - FIXED
- Mechanical Flow Control Valves
- Restrictive Flow Regulators
- Pressure Compensated - Fixed

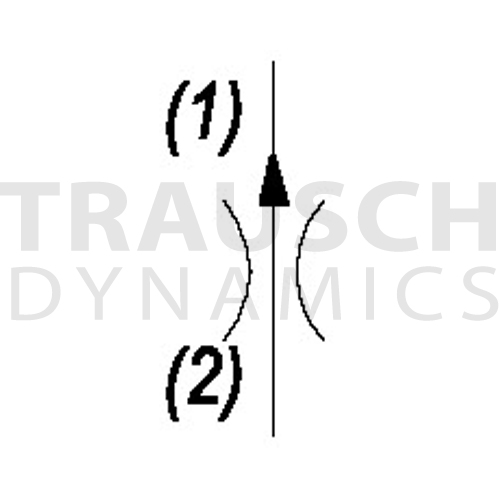

- The cartridge maintains a constant flow rate out of (1) regardless of load pressure changes in the circuit downstream of (1)
- The valve begins to respond to load changes when the flow through the valve creates a pressure differential across the control orifice, in excess of the spring load
- Reverse flow (1) to (2) retuns through the control orifice and is non-compensated
- Hardened parts for long life
- Industry common cavity
| Image | Item # | Mfr. Number | GPM Max | PSI Max | Size | Seal | Pressure Flow | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7011461 | DE-FCB-00-01.0 | 8 | 3500 | 7/8-14 | Buna | 1 GPM Flow | $40.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011462 | DE-FCB-00-02.0 | 8 | 3500 | 7/8-14 | Buna | 2 GPM Flow | $40.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011463 | DE-FCB-00-03.0 | 8 | 3500 | 7/8-14 | Buna | 3 GPM Flow | $40.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011464 | DE-FCB-00-04.0 | 8 | 3500 | 7/8-14 | Buna | 4 GPM Flow | $40.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011465 | DE-FCB-00-05.0 | 8 | 3500 | 7/8-14 | Buna | 5 GPM Flow | $40.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011466 | DE-FCB-00-06.0 | 8 | 3500 | 7/8-14 | Buna | 6 GPM Flow | $40.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011467 | DE-FCB-00-07.0 | 8 | 3500 | 7/8-14 | Buna | 7 GPM Flow | $40.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011468 | DE-FCB-00-08.0 | 8 | 3500 | 7/8-14 | Buna | 8 GPM Flow | $40.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011469 | DE-FCB-V0-01.0 | 8 | 3500 | 7/8-14 | Viton | 1 GPM Flow | $46.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011470 | DE-FCB-V0-02.0 | 8 | 3500 | 7/8-14 | Viton | 2 GPM Flow | $46.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011471 | DE-FCB-V0-03.0 | 8 | 3500 | 7/8-14 | Viton | 3 GPM Flow | $46.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011472 | DE-FCB-V0-04.0 | 8 | 3500 | 7/8-14 | Viton | 4 GPM Flow | $46.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011473 | DE-FCB-V0-05.0 | 8 | 3500 | 7/8-14 | Viton | 5 GPM Flow | $46.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011474 | DE-FCB-V0-06.0 | 8 | 3500 | 7/8-14 | Viton | 6 GPM Flow | $46.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011475 | DE-FCB-V0-07.0 | 8 | 3500 | 7/8-14 | Viton | 7 GPM Flow | $50.50 / EACH Usually ships in 5 week(s). Expedite available. |
