PILOT-TO-OPEN CHECK VALVE
- Mechanical Directional Control Valves
- Pilot Operated Check Valves
- Pilot to Open

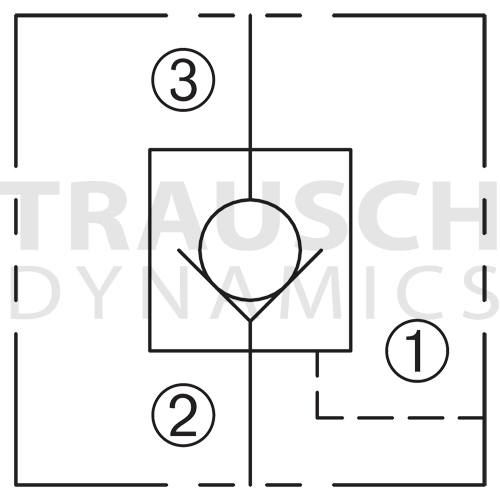

- Pressure at (2) overcomes the pring-bias poppet and allows free flow to (3)
- Flow in the opposite direction form (3) to (2), is blocked by the poppet
- When the required pilot pressure is acheived at (1), the poppet unseats and allows flow between (3) and (2)
- The pilot piston area to poppet seat area ration is 3:1
- Hardened parts for long life
- Industry common cavity
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Spring Bias Pressure | Price | Order Qty. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7015101 | DPC-080-P-N-25 | 5 | 3000 | 8 | Buna | 25 PSI | $30.83 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015206 | DPC-080-P-N-50 | 5 | 3000 | 8 | Buna | 50 PSI | $30.83 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015207 | DPC-080-P-N-100 | 5 | 3000 | 8 | Buna | 100 PSI | $30.83 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015014 | DPC-100-P-N-25 | 5 | 3000 | 10 | Buna | 25 PSI | $37.90 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015208 | DPC-100-P-N-50 | 5 | 3000 | 10 | Buna | 50 PSI | $37.90 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015209 | DPC-100-P-N-100 | 5 | 3000 | 10 | Buna | 100 PSI | $37.90 / EACH Usually ships in 7-8 week(s) |
| ||||
