PRESSURE REDUCING/RELIEVING - PILOT OPERATED SIDE INLET (3)

Proportional Control valves generate a variable pressure in response to a PWM (Pulse Width Modulated) current signal.
Pressure Reducing/Relieving
Direct Acting

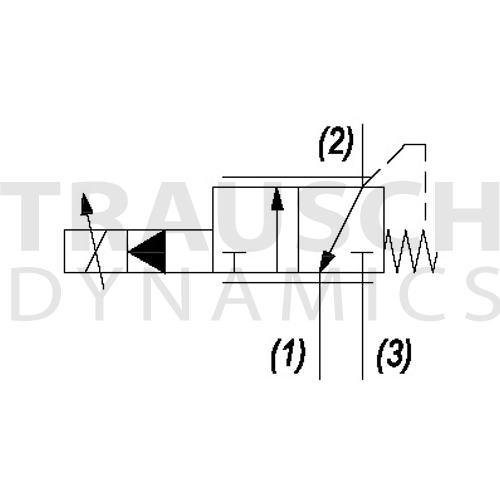

With no current applied to the proportional solenoid, the inlet port 3 (P) is blocked and the regulated port 2 (U) is vented to port 1 (T)
As current is increased, fluid pressure is proportionally controlled at the regulated port 3 (P) or 2 (U).
On attainment of proportionally determined pressure at 2 (U), the cartridge shifts to block flow at 3 (P), thereby regulating pressure at 2 (U)
In this mode, the valve also will relieve 2 (U), to 1 (T) at a variable value over the set reducing pressure
Hardened parts for long life
Economical Slip-in style
Efficient wet-armature construction
Integral waterproof coil
Continuous duty rated solenoid
Unitized Valve/Coil
