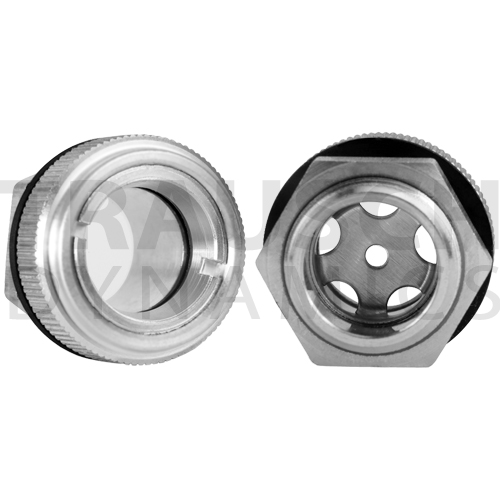

  • The LSP101 Series low pressure aluminum sight plug inserts through a clearance hole and utilizes a lock nut assembled from within the reservoir to seal on a flange gasket
  • A clear glass sight provides good open view visibility with options to further enhance visibility by accessorizing the sight plug with combinations of reflector and float ball options
  • Access to inside of reservoir is required to secure the lock nut
  • Box quantities may apply
  • Aluminum construction
  • Buna N seals
  • Soda lime glass sight
  • Stainless Steel reflector (when applicable)
  • Cork float ball
  • Maximum operating temperature up to 180°F
  • CAUTION:
  • Do not use an impact wrench to install a sight plug
  • Not recommended for steam applications
  • Scratched glass significantly reduces the pressure rating of the sight plug
*** Slide left / right to view more ***
ImageItem #Mfr. NumberViewNPT ThreadsMax PSI @ 69FHexPriceOrder Qty.
1232712LSP101-04Open3/4"-27500.88" $9.48 / EACH
Usually ships in 3 day(s)
MIN ORD QTY: 25
1232713LSP101-04-01Reflector3/4"-27500.88" $11.04 / EACH
Usually ships in 3 day(s)
MIN ORD QTY: 25
1232714LSP101-06Open1"-24501.12" $11.74 / EACH
Usually ships in 3 day(s)
MIN ORD QTY: 25
1232715LSP101-06-01Reflector1"-24501.12" $12.91 / EACH
Usually ships in 3 day(s)
MIN ORD QTY: 25
1232716LSP101-08Open1 1/4"-24251.38" $15.16 / EACH
Usually ships in 3 day(s)
MIN ORD QTY: 15
1232717LSP101-08-01Reflector1 1/4"-24251.38" $16.94 / EACH
Usually ships in 3 day(s)
MIN ORD QTY: 15
1232718LSP101-13Open1 7/8"-24252" $43.79 / EACH
Usually ships in 3 day(s)
MIN ORD QTY: 10
1232719LSP101-13-01Reflector1 7/8"-24252" $48.13 / EACH
Usually ships in 3 day(s)
MIN ORD QTY: 10
1232720LSP101-17Open2 3/8"-24102.62" $57.69 / EACH
Usually ships in 3 day(s)
MIN ORD QTY: 10
