Manual Double Selector Valves

Name: Trausch Dynamics
Address: 3727 Westgate Road, Grand Island, NE, 68803
Telephone: 800-323-5749

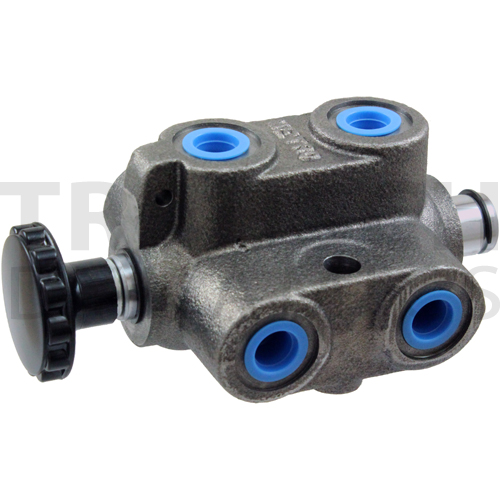

6-way 2-position double selector valve
Diverts flow going to two separate hydraulic circuits. For example two double acting cylinders or two reversible hydraulic motors can be operated by one four-way valve.
When the double selector spool i spushed in, the C and D ports (top ports) are connected to the A and E (right ports). When the selector spool is pulled out, the C and D ports are connected to the B and F ports (left ports).
