2W2P Normally Closed, Reverse Flow Energized - Pilot Operated Poppet

2W2P Normally Closed, Reverse Flow Energized - Pilot Operated Poppet

  • Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical poppet.
  • 2 Way 2 Position
  • Normally Closed
  • Reverse Flow Energized - Pilot Operated Poppet

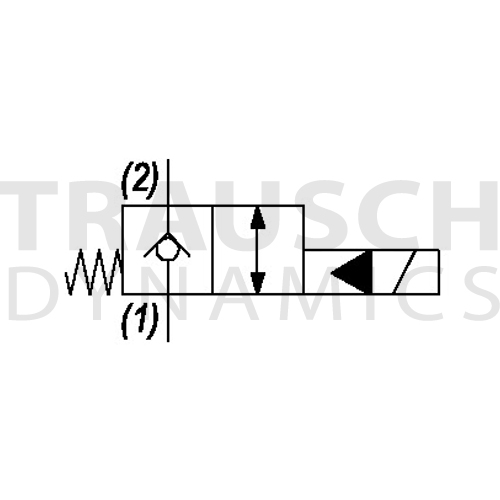

  • When de-energized, the valve block flow from (1) to (2) and allows reverse flow from (2) to (1).
  • When Energized, the valve allows flow from (1) to (2) and restricts flow from (2) to (1).
  • Hardened parts for long life
  • Efficient wet-armature construction
  • Cartridges are voltage interchangeable
  • Manual override option
  • Industry common cavity
  • Unitized, molded coil design
  • Continuous duty rated solenoid
  • Optional coil voltage and terminations
  • Optional "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
  • Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.

*** Slide table left/right to view more ***

Item Order Qty. Mfr. Number GPM PSI Size Seals Options
PB-S2B-00 Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Power Series 8 Size, 3/4-16 Thread, w/ Buna Seals, PB S2B 00, PBS2B00

7010064

PB-S2B-00 Delta Power, 2W2P Normally Closed...

$41.50/each

In stock - Ships same day

PB-S2B-00 8 3500 3/4-16 Buna -
PB-S2B-0M Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Power Series 8 Size, 3/4-16 Thread, w/ Buna Seals, Override & Detent, PB S2B 0M, PBS2B0M

7010065

PB-S2B-0M Delta Power, 2W2P Normally Closed...

$69.50/each

In stock - Ships same day

PB-S2B-0M 8 3500 3/4-16 Buna Override & Detent
PB-S2B-A0 Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Power Series 8 Size, 3/4-16 Thread, w/ Buna Seals & Screen, PB S2B A0, PBS2BA0

7010061

PB-S2B-A0 Delta Power, 2W2P Normally Closed...

$43.50/each

Usually ships in 11 weeks

PB-S2B-A0 8 3500 3/4-16 Buna Screen
PB-S2B-B1 Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Power Series 8 Size, 3/4-16 Thread, w/ Buna Seals, Override & Non-Detent, PB S2B B1, PBS2BB1

7010062

PB-S2B-B1 Delta Power, 2W2P Normally Closed...

$69.50/each

Usually ships in 11 weeks

PB-S2B-B1 8 3500 3/4-16 Buna Override & Non-Detent
PB-S2B-B3 Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Power Series 8 Size, 3/4-16 Thread, w/ Buna Seals, Screen, Override & Non-Detent, PB S2B B3, PBS2BB3

7010063

PB-S2B-B3 Delta Power, 2W2P Normally Closed...

$71.50/each

Usually ships in 11 weeks

PB-S2B-B3 8 3500 3/4-16 Buna Screen, Override & Non-Detent
PB-S2B-B4 Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Power Series 8 Size, 3/4-16 Thread, w/ Buna Seals, Screen, Override & Detent, PB S2B B4, PBS2BB4

7010067

PB-S2B-B4 Delta Power, 2W2P Normally Closed...

$71.50/each

Usually ships in 11 weeks

PB-S2B-B4 8 3500 3/4-16 Buna Screen, Override & Detent
PB-S2B-V0 Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Power Series 8 Size, 3/4-16 Thread, w/ Viton Seals, PB S2B V0, PBS2BV0

7010068

PB-S2B-V0 Delta Power, 2W2P Normally Closed...

$44.50/each

Usually ships in 11 weeks

PB-S2B-V0 8 3500 3/4-16 Viton -
PB-S2B-V1 Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Power Series 8 Size, 3/4-16 Thread, w/ Viton Seals, Override & Non-Detent, PB S2B V1, PBS2BV1

7010069

PB-S2B-V1 Delta Power, 2W2P Normally Closed...

$72.50/each

Usually ships in 11 weeks

PB-S2B-V1 8 3500 3/4-16 Viton Override & Non-Detent
PB-S2B-V3 Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Power Series 8 Size, 3/4-16 Thread, w/ Viton Seals, Screen, Override & Non-Detent, PB S2B V3, PBS2BV3

7010070

PB-S2B-V3 Delta Power, 2W2P Normally Closed...

$74.50/each

Usually ships in 11 weeks

PB-S2B-V3 8 3500 3/4-16 Viton Screen, Override & Non-Detent
PB-S2B-V4 Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Power Series 8 Size, 3/4-16 Thread, w/ Viton Seals, Screen, Override & Detent, PB S2B V4, PBS2BV4

7010072

PB-S2B-V4 Delta Power, 2W2P Normally Closed...

$74.50/each

Usually ships in 11 weeks

PB-S2B-V4 8 3500 3/4-16 Viton Screen, Override & Detent
PB-S2B-VM Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Power Series 8 Size, 3/4-16 Thread, w/ Viton Seals, Override & Detent, PB S2B VM, PBS2BVM

7010073

PB-S2B-VM Delta Power, 2W2P Normally Closed...

$72.50/each

Usually ships in 11 weeks

PB-S2B-VM 8 3500 3/4-16 Viton Override & Detent
PB-S2B-W0 Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Power Series 8 Size, 3/4-16 Thread, w/ Viton Seals & Screen, PB S2B W0, PBS2BW0

7010074

PB-S2B-W0 Delta Power, 2W2P Normally Closed...

$46.50/each

Usually ships in 11 weeks

PB-S2B-W0 8 3500 3/4-16 Viton Screen
DE-S2B-00 Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Delta Series 10 Size, 7/8-14 Thread, w/ Buna Seals, DE S2B 00, DES2B00

7010128

DE-S2B-00 Delta Power, 2W2P Normally Closed...

$44.00/each

In stock - Ships same day

DE-S2B-00 15 3500 7/8-14 Buna -
DE-S2B-0M Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Delta Series 10 Size, 7/8-14 Thread, w/ Buna Seals, Override & Detent, DE S2B 0M, DES2B0M

7010114

DE-S2B-0M Delta Power, 2W2P Normally Closed...

$103.00/each

Usually ships in 11 weeks

DE-S2B-0M 15 3500 7/8-14 Buna Override & Detent
DE-S2B-A0 Delta Power, 2W2P Normally Closed Pilot Operated Poppet - Reverse Flow Energized, Delta Series 10 Size, 7/8-14 Thread, w/ Buna Seals & Screen, DE S2B A0, DES2BA0

7010115

DE-S2B-A0 Delta Power, 2W2P Normally Closed...

$46.00/each

Usually ships in 11 weeks

DE-S2B-A0 15 3500 7/8-14 Buna Screen

*** Slide table left/right to view more ***
