2" BORE

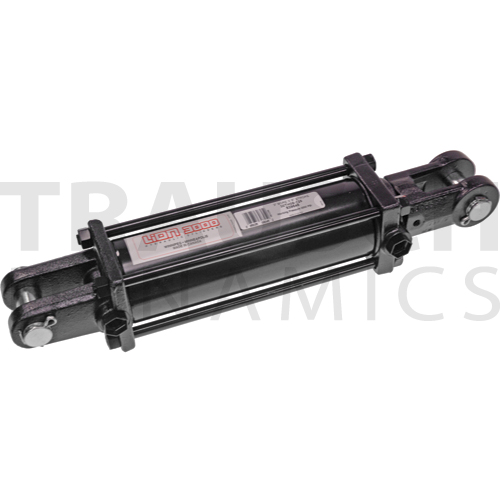

- Red Lion Agricultural Cylinders (Black in Color)
- 3000 PSI, Continuous Working Pressure
- Ductile Iron Pistons
- Hard Chrome Plated Rod
- High Tensile Steel, Zinc Plated Pins and Retainers
- Rod Wiper is Metal Encased Nitrile
- High Tensile Steel Tie-Rods
- Rod Seal, Tube Seal, & Piston Seal are 90 Durometer O-Ring with Back-Up Washers
- Piston Seal is Polyseal
- Catalog Page
| Image | Item # | Mfr. Number | Bore | Stroke | Rod Size | Retracted Dimension | Extended Dimension | Max. Column Load (lbs.) | Port Size | Pin Dia. | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6050553 | 20TH08-112 | 2" | 8" | 1-1/8" | 18-1/4" | 26-1/4" | 9425 | #8 SAE Oring | 1" | $161.81 / EACH In stock - Ships same day | |||
| 6050552 | 20TH08-112ASAE | 2" | 8" ASAE | 1-1/8" | 20-1/4" | 28-1/4" | 9425 | #8 SAE Oring | 1" | $159.27 / EACH Usually ships in 5 day(s) | |||
| 6050556 | 20TH10-112 | 2" | 10" | 1-1/8" | 20-1/4" | 30-1/4" | 9425 | #8 SAE Oring | 1" | $170.91 / EACH In stock - Ships same day | |||
| 6050559 | 20TH12-112 | 2" | 12" | 1-1/8" | 22-1/4" | 34-1/4" | 9425 | #8 SAE Oring | 1" | $179.19 / EACH In stock - Ships same day | |||
| 6050562 | 20TH14-112 | 2" | 14" | 1-1/8" | 24-1/4" | 38-1/4" | 9425 | #8 SAE Oring | 1" | $187.67 / EACH In stock - Ships same day | |||
| 6050565 | 20TH16-112 | 2" | 16" | 1-1/8" | 26-1/4" | 42-1/4" | 9425 | #8 SAE Oring | 1" | $197.14 / EACH In stock - Ships same day | |||
| 6050568 | 20TH18-112 | 2" | 18" | 1-1/8" | 28-1/4" | 46-1/4" | 9425 | #8 SAE Oring | 1" | $205.25 / EACH In stock - Ships same day | |||
| 6050571 | 20TH20-112 | 2" | 20" | 1-1/8" | 30-1/4" | 50-1/4" | 9205 | #8 SAE Oring | 1" | $214.51 / EACH In stock - Ships same day | |||
| 6050574 | 20TH24-112 | 2" | 24" | 1-1/8" | 34-1/4" | 58-1/4" | 6850 | #8 SAE Oring | 1" | $234.32 / EACH Usually ships in 5 day(s) |
