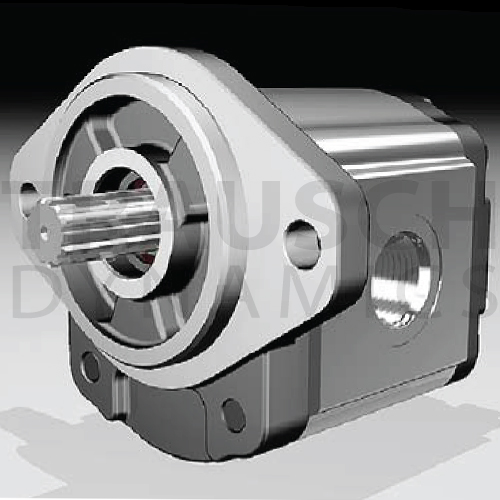

DUAL PORTED 7/8" 13-TOOTH SPLINED GEAR PUMPS - SAE B, ALUMINUM, HONOR
- Honor Hydraulic Gear Pumps
- 2 Bolt SAE B Mount
- 4" Pilot
- 7/8" 13-Tooth Splined Shaft
- Dual Ports - SAE O-Ring
- Similar to Prince SP25 Series
| Image | Item # | Mfr. Number | Rotation | Shaft | In3 Per Rev. | GPM @ RPM 1725/3450 | Cont. PSI | Max. PSI | RPM Range | Suction Port Threads | Pressure Port Threads | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5947631 | 3GB8ZU225R | CW | 7/8" 13-T Spline | 1.52 | 11.35/22.7 | 3500 | 3800 | 600-3000 | #20 SAE SIDE #20 SAE REAR | #12 SAE SIDE #12 SAE REAR | $649.72 / EACH Usually ships in 3 day(s) | |||
| 5947633 | 3GB8ZU225L | CCW | 7/8" 13-T Spline | 1.52 | 11.35/22.7 | 3500 | 3800 | 600-3000 | #20 SAE SIDE #20 SAE REAR | #12 SAE SIDE #12 SAE REAR | $649.72 / EACH Usually ships in 3 day(s) | |||
| 5947383 | 3GB8ZU228R | CW | 7/8" 13-T Spline | 1.7 | 12.69/25.39 | 3500 | 3800 | 600-3000 | #20 SAE SIDE #20 SAE REAR | #12 SAE SIDE #12 SAE REAR | $649.72 / EACH Usually ships in 3 day(s) | |||
| 5947635 | 3GB8ZU228L | CCW | 7/8" 13-T Spline | 1.7 | 12.69/25.39 | 3500 | 3800 | 600-3000 | #20 SAE SIDE #20 SAE REAR | #12 SAE SIDE #12 SAE REAR | $649.72 / EACH Usually ships in 3 day(s) | |||
| 5947637 | 3GB8ZU233R | CW | 7/8" 13-T Spline | 2.01 | 11.35/22.7 | 3500 | 3800 | 600-3000 | #20 SAE SIDE #20 SAE REAR | #12 SAE SIDE #12 SAE REAR | $649.72 / EACH Usually ships in 3 day(s) | |||
| 5947639 | 3GB8ZU233L | CCW | 7/8" 13-T Spline | 2.01 | 11.35/22.7 | 3500 | 3800 | 600-3000 | #20 SAE SIDE #20 SAE REAR | #12 SAE SIDE #12 SAE REAR | $649.72 / EACH Usually ships in 3 day(s) |
