40 SERIES
- Catalog Pages

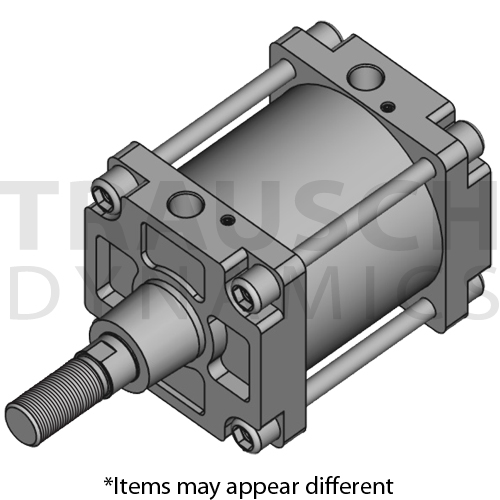

- Round Body Cylinders
- Series 40 available in 160mm, 200mm, 250mm, and 320mm bore sizes
- Double-acting, Cushioned
- ISO 15552 standards & with the previous DIN/ISO 6431-VDMA 24562 standards
- Rolled stainless steel rod (160 - 200mm)
- Chrome plated steel rod (250 - 320mm)
- Anodized AL heads and caps
- Adjustable end-stroke cushioning
- 10 - 2500mm Stroke Range
- 32-176°F Operating Temp
- Magnetic piston standard
- Standard Construction includes threaded nose mount with lock nut + lock nut for rod
- Materials: rod is rolled stainless steel AISI 303, tube is stainless steel AISI 304, and end-caps are anodized AL
| Image | Item # | Mfr. Number | Operation | Material | Bore | Construction | Stroke | Seals | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6079009 | 40M2L160A0160 | Double-Acting (Front & Reat Cushioned) | L | 160 mm | Standard | 160 mm | Standard | $1,141.98 / EACH Usually ships in 4 week(s) | |||
| 6079014 | 40M2L160A0250 | Double-Acting (Front & Reat Cushioned) | L | 160 mm | Standard | 250 mm | Standard | $1,391.81 / EACH Usually ships in 2-3 week(s) |
