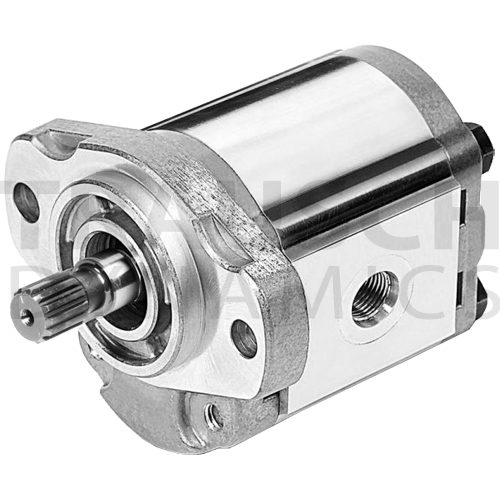

DUAL PORTED 1/2" 9-TOOTH SPLINED GEAR PUMPS 1.063" LONG - SAE AA, ALUMINUM, HONOR
- Honor Hydraulic Gear Pumps
- 2 Bolt AA Mounting Flange
- 2.0" Pilot
- 1/2" 9-Tooth Splined shaft
- Dual Ports SAE O-Ring
- Mounts same as Parker "D" Series (except outlet port on some is #6 instead of #8)
| Image | Item # | Mfr. Number | Rotation | Shaft | In3 Per Rev. | GPM @ RPM 1750 | Cont. PSI | Max PSI | RPM Range | Suction Port Thread | Pressure Port Thread | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5947257 | 1AG7U0SRE | CW | 1/2" 9-T Spline | 0.05 | 0.38 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $210.35 / EACH Usually ships in 3 day(s) | |||
| 5947258 | 1AG7U0SLE | CCW | 1/2" 9-T Spline | 0.05 | 0.38 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $210.35 / EACH Usually ships in 3 day(s) | |||
| 5947259 | 1AG7U01RE | CW | 1/2" 9-T Spline | 0.08 | 0.6 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $210.35 / EACH Usually ships in 3 day(s) | |||
| 5947260 | 1AG7U01LE | CCW | 1/2" 9-T Spline | 0.08 | 0.6 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $210.35 / EACH Usually ships in 3 day(s) | |||
| 5947261 | 1AG7U02RE | CW | 1/2" 9-T Spline | 0.12 | 0.92 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $210.35 / EACH Usually ships in 3 day(s) | |||
| 5947262 | 1AG7U02LE | CCW | 1/2" 9-T Spline | 0.12 | 0.92 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $210.35 / EACH Usually ships in 3 day(s) | |||
| 5947263 | 1AG7U27RE | CW | 1/2" 9-T Spline | 0.16 | 1.25 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $210.35 / EACH Usually ships in 3 day(s) | |||
| 5947264 | 1AG7U27LE | CCW | 1/2" 9-T Spline | 0.16 | 1.25 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $210.35 / EACH Usually ships in 3 day(s) | |||
| 5947265 | 1AG7U35RE | CW | 1/2" 9-T Spline | 0.21 | 1.57 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $210.35 / EACH Usually ships in 3 day(s) | |||
| 5947266 | 1AG7U35LE | CCW | 1/2" 9-T Spline | 0.21 | 1.57 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $210.35 / EACH Usually ships in 3 day(s) | |||
| 5947267 | 1AG7U04RE | CW | 1/2" 9-T Spline | 0.25 | 1.89 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $215.71 / EACH Usually ships in 3 day(s) | |||
| 5947268 | 1AG7U04LE | CCW | 1/2" 9-T Spline | 0.25 | 1.89 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $215.71 / EACH Usually ships in 3 day(s) | |||
| 5947269 | 1AG7U05RE | CW | 1/2" 9-T Spline | 0.31 | 2.36 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $215.71 / EACH Usually ships in 3 day(s) | |||
| 5947270 | 1AG7U05LE | CCW | 1/2" 9-T Spline | 0.31 | 2.36 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $215.71 / EACH Usually ships in 3 day(s) | |||
| 5947271 | 1AG7U06RE | CW | 1/2" 9-T Spline | 0.37 | 2.82 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $220.40 / EACH Usually ships in 3 day(s) |
