RESTRICTIVE FLOW REGULATORS - PRESSURE COMPENSATED - ADJUSTABLE
- Mechanical Flow Control Valves
- Restrictive Flow Regulators
- Pressure Compensated - Adjustable

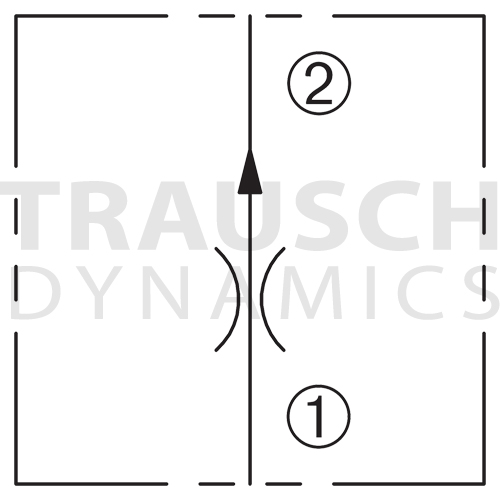

- The cartridge maintains a constant flow within specified accuracies from (1) to (2) regardless of downstream load pressure
- When flow produces a minimum predetermined pressure differential across the compensator spool control orifice, the spool shifts agains the spring force to throttle the flow and maintain the flow setting
- The cartridge's flow may be adjusted -50% of maximum setting
- Reverse flow is not regulated
- Pressure-compensated
- Quiet response
- Low flow capabilities
- Aluminum knob and disc nut
- Adjustable flow -50% of maximum setting
- Adjustment may be locked in place
- Industry common cavity
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Adj. Style | Price | Order Qty. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7015150 | DFRA-080-2-N-015 | 0.15 | 3000 | 8 | Buna | Knob | $39.46 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015151 | DFRA-080-2-N-020 | 0.20 | 3000 | 8 | Buna | Knob | $39.46 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015152 | DFRA-080-2-N-045 | 0.45 | 3000 | 8 | Buna | Knob | $39.46 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015153 | DFRA-080-2-N-065 | 0.65 | 3000 | 8 | Buna | Knob | $39.46 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015154 | DFRA-080-2-N-100 | 1.00 | 3000 | 8 | Buna | Knob | $39.46 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015155 | DFRA-080-2-N-150 | 1.50 | 3000 | 8 | Buna | Knob | $39.46 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015156 | DFRA-080-2-N-200 | 2.00 | 3000 | 8 | Buna | Knob | $39.46 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015157 | DFRA-100-2-N-H-100 | 1.00 | 3000 | 10 | Buna | Hidden | $45.17 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015158 | DFRA-100-2-N-H-150 | 1.50 | 3000 | 10 | Buna | Hidden | $45.17 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015159 | DFRA-100-2-N-H-200 | 2.00 | 3000 | 10 | Buna | Hidden | $45.17 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015160 | DFRA-100-2-N-H-300 | 3.00 | 3000 | 10 | Buna | Hidden | $45.17 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015161 | DFRA-100-2-N-H-500 | 5.00 | 3000 | 10 | Buna | Hidden | $45.17 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015162 | DFRA-100-2-N-H-750 | 7.50 | 3000 | 10 | Buna | Hidden | $45.17 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015163 | DFRA-100-2-N-H-1000 | 10.00 | 3000 | 10 | Buna | Hidden | $45.17 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015164 | DFRA-100-2-N-K-100 | 1.00 | 3000 | 10 | Buna | Knob | $56.40 / EACH Usually ships in 7-8 week(s) |
| ||||
