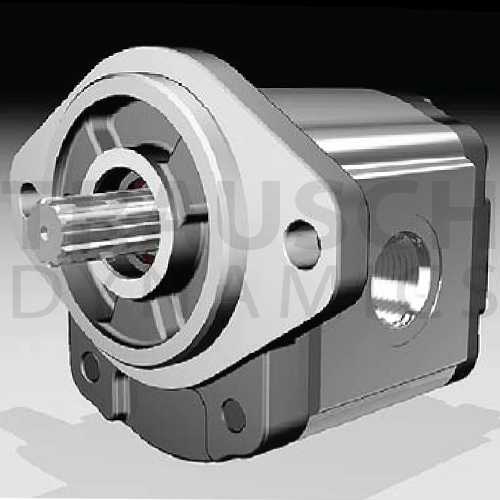

SIDE PORTED 5/8" 9-TOOTH SPLINED GEAR PUMPS 1.25" LONG - SAE A, ALUMINUM, HONOR
- Honor Hydraulic Gear Pumps
- 2 Bolt SAE A Mount
- 3-1/4" pilot
- 5/8" 9-Tooth Splined shaft
- Side Ports SAE O-Ring
- Similar to Prince SP20 Series
| Image | Item # | Mfr. Number | Rotation | Shaft | In3 Per Rev. | GPM @ RPM 1750 | Cont. PSI | Max PSI | RPM Range | Suction Port Thread | Pressure Port Thread | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5947064 | 2GG2U04R | CW | 5/8" 9-T Spline | 0.24 | 1.82 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $244.51 / EACH Usually ships in 3 day(s) | |||
| 5947054 | 2GG2U04L | CCW | 5/8" 9-T Spline | 0.24 | 1.82 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $244.51 / EACH Usually ships in 3 day(s) | |||
| 5947695 | 2GG2U05R | CW | 5/8" 9-T Spline | 0.3 | 2.27 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $244.51 / EACH Usually ships in 3 day(s) | |||
| 5947696 | 2GG2U05L | CCW | 5/8" 9-T Spline | 0.3 | 2.27 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $244.51 / EACH Usually ships in 3 day(s) | |||
| 5947072 | 2GG2U06R | CW | 5/8" 9-T Spline | 0.37 | 2.8 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $244.51 / EACH In stock - Ships same day | |||
| 5947058 | 2GG2U06L | CCW | 5/8" 9-T Spline | 0.37 | 2.8 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $244.51 / EACH Usually ships in 3 day(s) | |||
| 5947697 | 2GG2U07R | CW | 5/8" 9-T Spline | 0.43 | 3.26 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $244.51 / EACH Usually ships in 3 day(s) | |||
| 5947698 | 2GG2U07L | CCW | 5/8" 9-T Spline | 0.43 | 3.26 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $244.51 / EACH Usually ships in 3 day(s) | |||
| 5947029 | 2GG2U08R | CW | 5/8" 9-T Spline | 0.52 | 3.94 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $244.51 / EACH In stock - Ships same day | |||
| 5947031 | 2GG2U08L | CCW | 5/8" 9-T Spline | 0.52 | 3.94 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $244.51 / EACH Usually ships in 3 day(s) | |||
| 5947019 | 2GG2U09R | CW | 5/8" 9-T Spline | 0.58 | 4.39 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $244.51 / EACH In stock - Ships same day | |||
| 5947334 | 2GG2U09L | CCW | 5/8" 9-T Spline | 0.58 | 4.39 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $244.51 / EACH Usually ships in 3 day(s) | |||
| 5947306 | 2GG2U11R | CW | 5/8" 9-T Spline | 0.69 | 5.23 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $244.51 / EACH In stock - Ships same day | |||
| 5947332 | 2GG2U11L | CCW | 5/8" 9-T Spline | 0.69 | 5.23 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $244.51 / EACH Usually ships in 3 day(s) | |||
| 5947382 | 2GG2U14R | CW | 5/8" 9-T Spline | 0.85 | 6.44 | 3500 | 4200 | 600-4000 | #12 SAE | #10 SAE | $254.56 / EACH In stock - Ships same day |
