Priority Flow Regulators - Pressure Compensated - Adjustable

Name: Trausch Dynamics
Address: 3727 Westgate Road, Grand Island, NE, 68803
Telephone: 800-323-5749

Mechanical Flow Control Valves
Priority Flow Regulators
Pressure Compensated - Adjustable

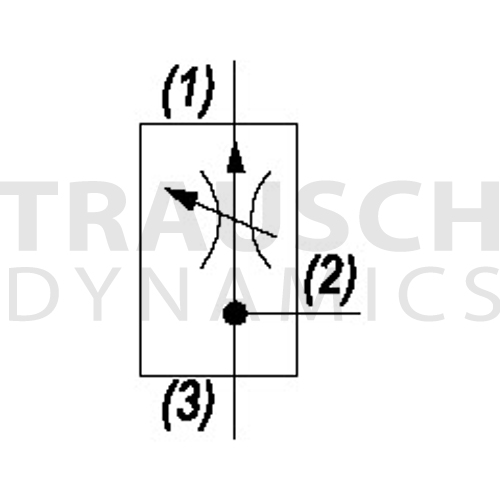

The valve allows pressure compensated flow from (3) to (1) regulated by the pressure present at (3)
Excess flow bypasses out (2)
Can be used as a restrictive pressure compensated flow control when the bypass port (2) is blocked
The spring chamber is constantly vented at (1)
Hardened parts for long life
Industry common cavity

*** Slide table left/right to view more ***

Item	Order Qty.	Mfr. Number	GPM	PSI	Size	Seal	Options	Pressure Flow Range
7012443 PP-FCQ-00-0.50 Delta Power, Adjustable Prior...	$47.50/each Usually ships in 11 weeks	PP-FCQ-00-0.50	5	3500	3/4-16	Buna	-	0.25-0.50 GPM Flow
7012444 PP-FCQ-00-0.75 Delta Power, Adjustable Prior...	$47.50/each Usually ships in 11 weeks	PP-FCQ-00-0.75	5	3500	3/4-16	Buna	-	0.50-0.75 GPM Flow
7012445 PP-FCQ-00-1.25 Delta Power, Adjustable Prior...	$47.50/each Usually ships in 11 weeks	PP-FCQ-00-1.25	5	3500	3/4-16	Buna	-	0.75-1.25 GPM Flow
7012446 PP-FCQ-00-2.50 Delta Power, Adjustable Prior...	$47.50/each Usually ships in 11 weeks	PP-FCQ-00-2.50	5	3500	3/4-16	Buna	-	1.25-2.50 GPM Flow
7012447 PP-FCQ-00-5.00 Delta Power, Adjustable Prior...	$47.50/each Usually ships in 11 weeks	PP-FCQ-00-5.00	5	3500	3/4-16	Buna	-	2.50-5.00 GPM Flow
7012448 PP-FCQ-0I-0.50 Delta Power, Adjustable Prior...	$47.50/each Usually ships in 11 weeks	PP-FCQ-0I-0.50	5	3500	3/4-16	Buna	Internally Adj.	0.25-0.50 GPM Flow
7012449 PP-FCQ-0I-0.75 Delta Power, Adjustable Prior...	$47.50/each Usually ships in 11 weeks	PP-FCQ-0I-0.75	5	3500	3/4-16	Buna	Internally Adj.	0.50-0.75 GPM Flow
7012450 PP-FCQ-0I-1.25 Delta Power, Adjustable Prior...	$47.50/each Usually ships in 11 weeks	PP-FCQ-0I-1.25	5	3500	3/4-16	Buna	Internally Adj.	0.75-1.25 GPM Flow
7012451 PP-FCQ-0I-2.50 Delta Power, Adjustable Prior...	$47.50/each Usually ships in 11 weeks	PP-FCQ-0I-2.50	5	3500	3/4-16	Buna	Internally Adj.	1.25-2.50 GPM Flow
7012452 PP-FCQ-0I-5.00 Delta Power, Adjustable Prior...	$47.50/each Usually ships in 11 weeks	PP-FCQ-0I-5.00	5	3500	3/4-16	Buna	Internally Adj.	2.50-5.00 GPM Flow
7012453 PP-FCQ-0K-0.50 Delta Power, Adjustable Prior...	$58.00/each Usually ships in 11 weeks	PP-FCQ-0K-0.50	5	3500	3/4-16	Buna	Override Knob	0.25-0.50 GPM Flow
7012454 PP-FCQ-0K-0.75 Delta Power, Adjustable Prior...	$58.00/each Usually ships in 11 weeks	PP-FCQ-0K-0.75	5	3500	3/4-16	Buna	Override Knob	0.50-0.75 GPM Flow
7012455 PP-FCQ-0K-1.25 Delta Power, Adjustable Prior...	$58.00/each Usually ships in 11 weeks	PP-FCQ-0K-1.25	5	3500	3/4-16	Buna	Override Knob	0.75-1.25 GPM Flow
7012456 PP-FCQ-0K-2.50 Delta Power, Adjustable Prior...	$58.00/each Usually ships in 11 weeks	PP-FCQ-0K-2.50	5	3500	3/4-16	Buna	Override Knob	1.25-2.50 GPM Flow
7012458 PP-FCQ-V0-0.50 Delta Power, Adjustable Prior...	$51.50/each Usually ships in 11 weeks	PP-FCQ-V0-0.50	5	3500	3/4-16	Viton	-	0.25-0.50 GPM Flow
