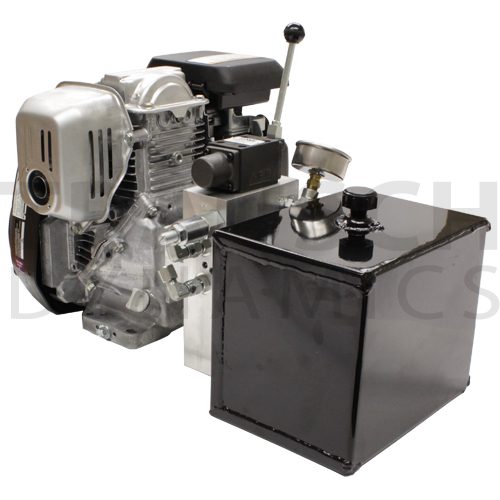

GAS ENGINE DUMP TRAILER POWER UNIT
- Technical Page
- Pressure and Tank power unit
- Designed for use on a Dump trailer
- Takes place of a 12 VDC power unit
- 4.6 HP Honda Gas Engine
- Recoil Start (Pull Start)
- 2 GPM Maximum
- 3200 PSI Maximum
- Adjustable Relief Valve (Preset at 3200 PSI)
- #6 SAE O-Ring Ports
- Aluminum Body Gear Pump
- 2.25 Gallon Usable Tank, 12 Gauge Steel, Powder Coated Black
- 0-5000 PSI Liquid Filled Pressure Gauge
- 3/8" NPFT Filler/Breather
- 100 Mesh Suction Strainer
- Use 5/16" Bolts on Gas Enine For Mounting
- Fully Tested Before Shipment
- Engine Oil Onboard
- Anti-Wear ISO 46 Hydraulic Oil Recommended, ATF Satisfactory
- Replacement Components Available from stock
| Image | Item # | HP | Performance GPM @ PSI | Pressure Gauge | Tank Capacity | A & B Ports | Dimensions L x W x H | Dry Unit Wt. | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 9504648 | 4.6 | 2 GPM @ 3200 PSI | 0-5000 PSI | 2.25 Gallons | #6 SAE O-Ring | 23.75" x 14.65" x 15.5" | 56 lbs. | $1,491.38 / EACH Usually ships in 3 day(s) | |||
 | 9504662 | - | - | - | - | #6 SAE O-Ring | 23.75" x 14.65" x 17.5" | 7 lbs. | $261.57 / EACH Available |
