Priority Flow Regulators - Pressure Compensated - Fixed
- Mechanical Flow Control Valves
- Priority Flow Regulators
- Pressure Compensated - Fixed

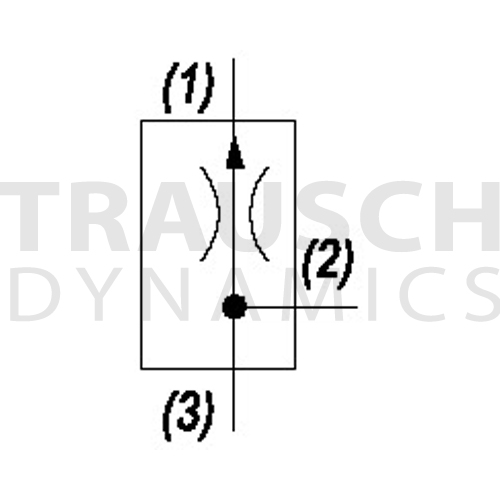

- The valve allows pressure compensated flow from (3) to (1) regulated by the pressure present at (3)
- Excess flow bypasses out (2)
- The spring chamber is constantly vented at (1)
- Hardened parts for ling life
- Industry common cavity
| Item | Order Qty. | Mfr. Number | GPM | PSI | Size | Seal | Pressure Flow Setting |
|---|---|---|---|---|---|---|---|
|
$32.50/each |
DF-FCP-00-01.0 | 10 | 3000 | 7/8-14 | Buna | 1 GPM | |
|
$32.50/each |
DF-FCP-00-02.0 | 10 | 3000 | 7/8-14 | Buna | 2 GPM | |
|
$32.50/each |
DF-FCP-00-03.0 | 10 | 3000 | 7/8-14 | Buna | 3 GPM | |
|
$32.50/each |
DF-FCP-00-04.0 | 10 | 3000 | 7/8-14 | Buna | 4 GPM | |
|
$32.50/each |
DF-FCP-00-05.0 | 10 | 3000 | 7/8-14 | Buna | 5 GPM | |
|
$32.50/each |
DF-FCP-00-06.0 | 10 | 3000 | 7/8-14 | Buna | 6 GPM | |
|
$32.50/each |
DF-FCP-00-07.0 | 10 | 3000 | 7/8-14 | Buna | 7 GPM | |
|
$32.50/each |
DF-FCP-00-08.0 | 10 | 3000 | 7/8-14 | Buna | 8 GPM | |
|
$32.50/each |
DF-FCP-00-09.0 | 10 | 3000 | 7/8-14 | Buna | 9 GPM | |
|
$32.50/each |
DF-FCP-00-10.0 | 10 | 3000 | 7/8-14 | Buna | 10 GPM | |
|
$36.50/each |
DF-FCP-V0-01.0 | 10 | 3000 | 7/8-14 | Viton | 1 GPM | |
|
$36.50/each |
DF-FCP-V0-02.0 | 10 | 3000 | 7/8-14 | Viton | 2 GPM | |
|
$36.50/each |
DF-FCP-V0-03.0 | 10 | 3000 | 7/8-14 | Viton | 3 GPM | |
|
$36.50/each |
DF-FCP-V0-04.0 | 10 | 3000 | 7/8-14 | Viton | 4 GPM | |
|
$36.50/each |
DF-FCP-V0-05.0 | 10 | 3000 | 7/8-14 | Viton | 5 GPM |
