MANUAL OPERATED - 2W2P NORMALLY CLOSED - PULL TYPE W/ DETENT
- Mechanical Directional Control Valves
- Manual Operated
- 2 Way 2 Position Normally Closed
- Pull Type w/ Detent

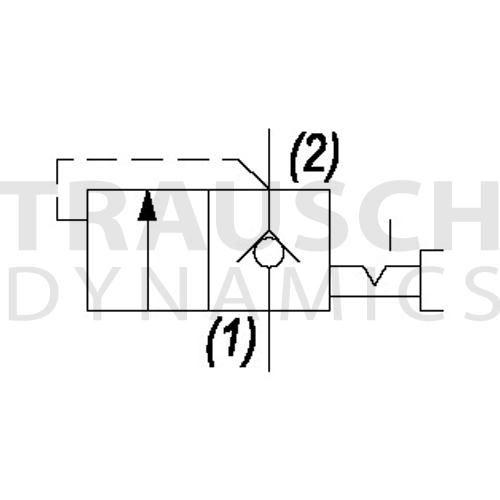

- The valve blocks flow from (1) to (2) until an operator pulls the shaft outward
- The bias spring allows for backpressure at (2) before the valve will open
- Note: pressure at port (2) will directly act on the spool and spring
- Port (2) is intended to be a tank port only
- Hardened parts for long life
- Industry common cavity
- Optional bias springs for backpressure application flexibility
Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Spring Bias Pressure | Price | Order Qty. | ||
---|---|---|---|---|---|---|---|---|---|---|---|
7012372 | DE-MCB-00-0065 | 20 | 3500 | 7/8-14 | Buna | 65 PSI | $51.25 / EACH Usually ships in 5 week(s). Expedite available. | ||||
7012373 | DE-MCB-00-0160 | 20 | 3500 | 7/8-14 | Buna | 160 PSI | $51.25 / EACH Usually ships in 5 week(s). Expedite available. | ||||
7010788 | DE-MCB-0K-0065 | 20 | 3500 | 7/8-14 | Buna | 65 PSI | $56.00 / EACH Usually ships in 5 week(s). Expedite available. | ||||
7010789 | DE-MCB-0K-0160 | 20 | 3500 | 7/8-14 | Buna | 160 PSI | $56.00 / EACH In stock - Ships same day | ||||
7012374 | DE-MCB-A0-0065 | 20 | 3500 | 7/8-14 | Buna | 65 PSI | $53.25 / EACH Usually ships in 5 week(s). Expedite available. | ||||
7012375 | DE-MCB-A0-0160 | 20 | 3500 | 7/8-14 | Buna | 160 PSI | $53.25 / EACH Usually ships in 5 week(s). Expedite available. | ||||
7012376 | DE-MCB-AK-0065 | 20 | 3500 | 7/8-14 | Buna | 65 PSI | $58.00 / EACH Usually ships in 5 week(s). Expedite available. | ||||
7012377 | DE-MCB-AK-0160 | 20 | 3500 | 7/8-14 | Buna | 160 PSI | $58.00 / EACH Usually ships in 5 week(s). Expedite available. | ||||
7012378 | DE-MCB-V0-0065 | 20 | 3500 | 7/8-14 | Viton | 65 PSI | $54.25 / EACH Usually ships in 5 week(s). Expedite available. | ||||
7012379 | DE-MCB-V0-0160 | 20 | 3500 | 7/8-14 | Viton | 160 PSI | $54.25 / EACH Usually ships in 5 week(s). Expedite available. | ||||
7012380 | DE-MCB-VK-0065 | 20 | 3500 | 7/8-14 | Buna | 65 PSI | $59.00 / EACH Usually ships in 5 week(s). Expedite available. | ||||
7012381 | DE-MCB-VK-0160 | 20 | 3500 | 7/8-14 | Buna | 160 PSI | $59.00 / EACH Usually ships in 5 week(s). Expedite available. | ||||
7012382 | DE-MCB-W0-0065 | 20 | 3500 | 7/8-14 | Viton | 65 PSI | $56.25 / EACH Usually ships in 5 week(s). Expedite available. | ||||
7012383 | DE-MCB-W0-0160 | 20 | 3500 | 7/8-14 | Viton | 160 PSI | $56.25 / EACH Usually ships in 5 week(s). Expedite available. | ||||
7012384 | DE-MCB-WK-0065 | 20 | 3500 | 7/8-14 | Viton | 65 PSI | $61.00 / EACH Usually ships in 5 week(s). Expedite available. |
