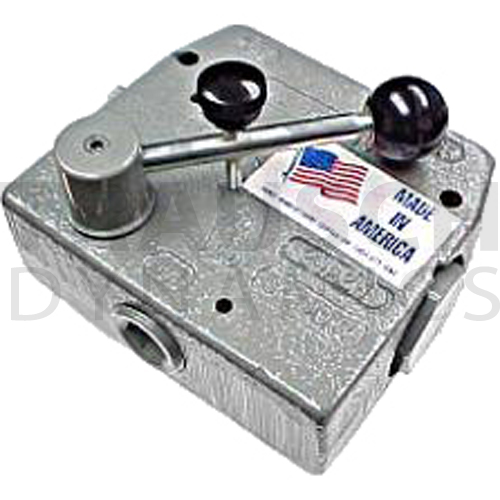

PRINCE - PRESSURE COMPENSATED ADJUSTABLE FLOW CONTROL VALVES
- Prince
- Rotate the handle and control the flow out of "CF" up to the maximum controlled flow rating of the valve
- Remaining flow is bypassed to "EF" port (excess flow port)
- The "EF" port flow can be used to power another circuit or it can be returned to tank
- Once the controlled flow ("CF") is set, it will remain nearly constant with variations in pressure on either the "CF" or "EF" legs of the circuit.
- The valve may be used as an inline valve by plugging the "EF" port and using "IN" and "CF"
- Models with relief are preset at 1500 PSI
- Do NOT run flow backwards through this valve
| Image | Item # | Mfr. Number | Ports | CF & "EF" Ports Location | With Relief | Max. "CF" GPM | Max. Input GPM | Max. PSI | Price | Order Qty. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7100102 | RD-108-8 | #8 SAE | Top | No | 8 | 30 | 3000 | $148.40 / EACH Quantity breaks In stock - Ships same day | |||||
 | 7107884 | RD-1950-8 | 1/2" NPTF | Side | No | 8 | 30 | 3000 | $166.45 / EACH Quantity breaks In stock - Ships same day |
| ||||
| 7100034 | RD-150-8 | 1/2" NPTF | Top | No | 8 | 30 | 3000 | $148.40 / EACH Quantity breaks In stock - Ships same day | |||||
 | 7100051 | RD-150-16 | 1/2" NPTF | Top | No | 16 | 30 | 3000 | $136.50 / EACH Quantity breaks In stock - Ships same day | |||||
 | 7107889 | RD-1950-16 | 1/2" NPTF | Side | No | 16 | 30 | 3000 | $166.45 / EACH Quantity breaks In stock - Ships same day | |||||
| 7100136 | RDRS-150-16 | 1/2" NPTF | Top | Yes | 16 | 30 | 3000 | $170.10 / EACH Quantity breaks Usually ships in 3 day(s) | |||||
 | 7107901 | RD-1975-16 | 3/4" NPTF | Side | No | 16 | 30 | 3000 | $160.61 / EACH Quantity breaks Usually ships in 3 day(s) |
| ||||
| 7100068 | RD-175-16 | 3/4" NPTF | Top | No | 16 | 30 | 3000 | $161.78 / EACH Quantity breaks Usually ships in 3 day(s) |
| ||||
 | 7100153 | RDRS-175-30 | 3/4" NPTF | Top | Yes | 30 | 30 | 3000 | $171.50 / EACH Quantity breaks Usually ships in 10 week(s) | |||||
 | Call For Price Available | |||||||||||||
 | 7107918 | RD-1975-30 | 3/4" NPTF | Side | No | 30 | 30 | 3000 | $152.60 / EACH Quantity breaks In stock - Ships same day | |||||
| 7100085 | RD-175-30 | 3/4" NPTF | Top | No | 30 | 30 | 3000 | $150.50 / EACH Quantity breaks In stock - Ships same day | |||||
