PILOT OPERATED CHECK - PILOT TO OPEN
- Mechanical Directional Control Valves
- Pilot Operated Check Valves
- Pilot to Open

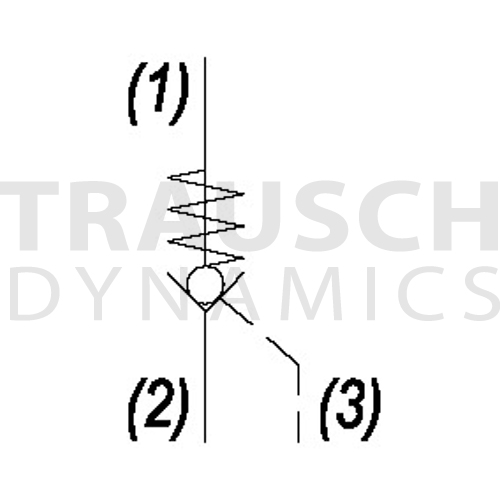

- The valve allows free flow to pass from (2) to (1) and blocks flow from (1) to (2)
- When pilot pressure is applied to port (3) the valve allows free flow from (1) to (2)
- The cartridge has a 2:1 pilot ratio, meaning that at at least one half of the load pressure held at (1) is required at (3) to open the valve
- The check is spring biased to assure holding in static or no-load conditions
- Hardened parts for long life
- Industry common cavity
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Crack Pressure | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010605 | PP-CPB-00-0025 | 6 | 3500 | 3/4-16 | Buna | 25 PSI | $31.00 / EACH In stock - Ships same day | |||
 | 7012205 | PP-CPB-V0-0025 | 6 | 3500 | 3/4-16 | Viton | 25 PSI | $35.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011007 | DF-CPB-00-0025 | 8 | 3500 | 7/8-14 | Buna | 25 PSI | $32.50 / EACH In stock - Ships same day | |||
 | 7012213 | DF-CPB-V0-0025 | 8 | 3500 | 7/8-14 | Viton | 25 PSI | $36.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7012220 | DF-CPC-00-0025 | 10 | 3500 | 7/8-14 | Buna | 25 PSI | $41.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7012221 | DF-CPC-V0-0025 | 10 | 3500 | 7/8-14 | Viton | 25 PSI | $45.25 / EACH Usually ships in 5 week(s). Expedite available. |
